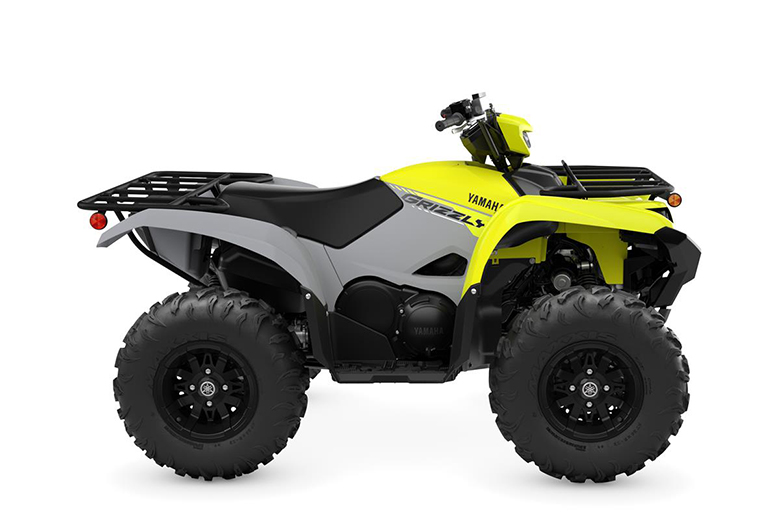

Grizzly EPS Yamaha 2022 Utility Quad Bike

Grizzly EPS Yamaha 2022 Utility Quad Bike is an impressive performing ATV in its class with better capabilities, all-day comfort, and legendary durability.

Grizzly EPS Yamaha 2022 Utility Quad Bike – Features and Price

Grizzly EPS Yamaha 2022 Utility Quad Bike

Top Features

Grizzly EPS Yamaha 2022 Utility Quad Bike delivers Yamaha’s legendary riding thrill without sacrificing comfort owing to its powerful 686cc engine built for smooth, quiet operation and increased middle power. Yamaha’s Ultramatic transmission is the highly durable CVT transmission on the market that offer rapid reaction with innovative features such as natural all-wheel engine braking for more control and confidence.

The Grizzly EPS handles challenging terrain easily thanks to its high ground clearance and adjustable suspension. The Grizzly EPS Yamaha is ready to go wherever you go with its long-travel shocks, wide-arc A-arms and full-body skid plates.

In contrast to many computer-controlled 4WD systems on the market, the Yamaha On-Command® system puts the rider in command. The Grizzly EPS produces power reliably and consistently thanks to selectable 2WD, limited-slip 4WD, and entirely locked differential 4WD modes. Reduced fatigue, superior control and trail feel are all standard features of the Grizzly EPS’s best-in-class speed-sensitive Electric Power Steering (EPS).

Grizzly EPS Yamaha 2022 Utility Quad Bike

Capability

Grizzly EPS Yamaha 2022 Utility Quad Bike offers Ultramatic® gearbox on the Grizzly EPS has a gated shifter, dual-range (Hi/Lo) drive with reverse gear, and the industry’s most advanced and long-lasting CVT drive system. The bike has an automated centrifugal clutch that keeps the belt tension constant for minor wear, while a sprag clutch gives natural all-wheel engine braking.

An ideal engine for the trail rider seeking thrill on every ride should blend full big-bore power with the rapid, responsive midrange. The Grizzly EPS is powered by a powerful 686cc engine that has been designed for leisure riding in terms of power delivery, torque and engine character.

The three-position On-Command® 4WD system lets you convert between 2WD, limited-slip 4WD quickly, and entirely locked differential 4WD with a unique button. In full differential lock mode, an override button enables the engine to achieve its maximum rpm.

Grizzly EPS Yamaha 2022 Utility Quad Bike

With the Grizzly EPS’s high-mounted air intake architecture, you can confidently tackle dirt and water. The design boosts power and torque while allowing for more onboard storage and quick tool-free replacement of the foam air filter.

The Grizzly EPS has a stainless steel exhaust system and a screen-type spark arrestor for high power with low noise output to ensure years of trouble-free operation.

Slow-speed technical riding may put a lot of thermal strain on a liquid-cooled engine, so the Grizzly EPS has a large-capacity radiator that supplies lots of airflow for best cooling efficiency and it’s mounted high in the frame for maximum protection.

A high-mounted drive system air intake reduces drive system temperatures and helps keep water and debris out of the drive case. The Grizzly EPS has 26-inch Maxxis® tires that provide an accurate steering feel and feedback to maximize the available traction.

Powerful and consistent braking is included on all Grizzly EPS models, owing to four-wheel hydraulic disc brakes with unrivaled braking sensation. The Grizzly EPS has an excellent 11.3-inch ground clearance and brand new full-length composite skid plates for optimal underbelly protection that allow it to traverse practically any terrain with ease.

Grizzly EPS Yamaha 2022 Utility Quad Bike

The Grizzly EPS is pre-wired with Yamaha’s unique Adventure Pro® GPS that allows you to take your trail navigation to the next level. This cutting-edge GPS unit integrates various features into a single durable 7-inch full-color display. Trail routes may be found, downloaded, recorded and shared with others. Yamaha’s Adventure Pro® system, uniquely integrated and multipurpose also delivers sophisticated vehicle data with excellent clarity.

Comfort

Grizzly EPS Yamaha 2022 Utility Quad Bike offers a combination of an independent double-wishbone suspension with 7.6-inch of front wheel travel and 9.1-inch of rear-wheel travel and nitrogen-charged shocks with 5-way adjustable preload that provides excellent rider comfort on even the most challenging routes.

Yamaha’s Electric Power Steering (EPS), an industry’s best balance of electric steering assistance and positive trail feedback, helps you avoid fatigue and attack every corner.

The bike has a 4.76-gallon gasoline tank positioned behind the seat for more excellent mass centralization and handling. The large comfortable seat provides lots of room for the rider to move when riding, improving rider comfort for extended days exploring any path.

Grizzly EPS Yamaha 2022 Utility Quad Bike

Confidence

Grizzly EPS Yamaha 2022 Utility Quad Bike has a rugged composite front bumper that resists scratching and rusting. The injection-molded fenders and CV joint shields protect against rock and debris damage. LED technology consumes less energy, produces brighter, more apparent illumination and has a long lifespan. A handlebar-mounted halogen work light adds extra lighting that changes with the rider’s input for improved visibility.

A selection of accessory choices was designed to work in tandem with the Grizzly EPS providing a variety of performance, convenience, protection and style advantages with factory-level fitment and functionality. It has a 12V power outlet to charge your electronics as well.

Rugged, large-diameter steel cargo racks with a long-lasting wrinkle paint finish can carry 308 pounds (110 lb front, 198 lb rear). There are three onboard storage containers to keep items safe. The Grizzly EPS comes equipped with a center-mounted heavy-duty 2-inch receiver that can pull 1,300 pounds.

The Grizzly EPS like other Yamaha ATVs and Side-by-Sides, is built in the United States to satisfy Yamaha’s stringent standards for durability and dependability.

Grizzly EPS Yamaha 2022 Utility Quad Bike

The Grizzly EPS transmission has its cooling inlet to keep temperatures stable, a more extensive belt to accommodate the torque of the enormous motor and Yamaha’s innovative sprag clutch to maintain belt tension consistent. The final result is a powertrain designed for years of trouble-free service that outperforms the competition and is guaranteed by the industry’s only 10-Year V-Belt Limited Warranty.

Grizzly EPS Yamaha 2022 Utility Quad Bike – Price

The new Grizzly EPS Yamaha 2022 Utility ATV is available at $10,299 in Armor Gray/ Yellow and Realtree Edge color options.

Grizzly EPS Yamaha 2022 Utility Quad Bike – Technical Specifications

Engine

Type 686cc liquid-cooled SOHC 4-stroke
Bore x Stroke 102mm x 84mm
Compression Ratio 10.0:1
Fuel Delivery Yamaha Fuel Injection (YFI), 44mm
Transmission Ultramatic V-belt including all-wheel engine braking; H, L, N, R, P
Final Drive On-Command Three-way locking differential; 2WD, 4WD, locked 4WD; shaft

Chassis

Suspension / Front Independent double-wishbone; 5-way preload adjustment, 7.6-inch travel
Suspension / Rear Independent double-wishbone with anti-sway bar; 5-way preload adjustment, 9.1-inch travel
Brakes / Front Dual hydraulic disc
Brakes / Rear Dual hydraulic disc
Tires / Front AT26 x 8-12 Maxxis® MU05Y
Tires / Rear AT26 x 10-12 Maxxis® MU06Y

Dimensions

L x W x H 81.5 inch x 48.4 inch x 49.3 inch
Seat Height 36.1 inch
Wheelbase 49.2 inch
Turning Radius 146.0 inch
Maximum Ground Clearance 11.3 inch
Fuel Capacity 4.8 gallons
Wet Weight 701 lb
Rack Capacity 110 lb (front) / 198 lb (rear)
Towing Capacity 1,322 lb

Other

Warranty 6-Month (Limited Factory Warranty) & 10-Year V-Belt Limited Warranty
