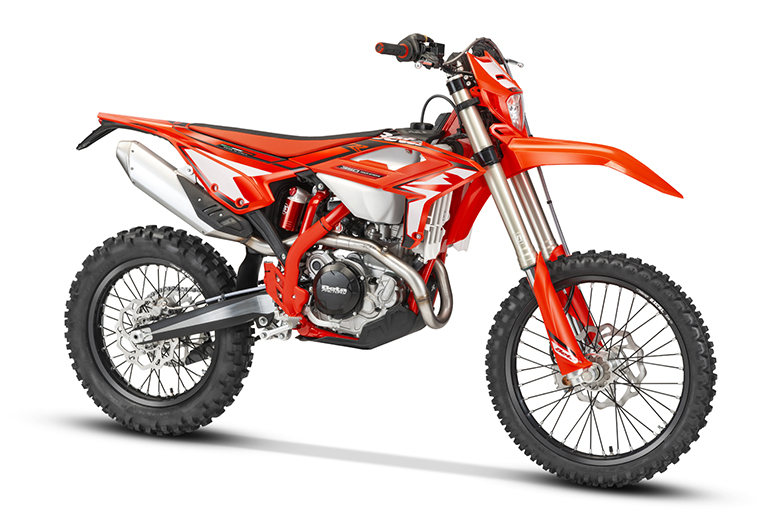

The 2024 Beta RR Racing 4T 350 Dirt Motorcycle features a new frame offering extremely robust riding pleasure. The steering tube spars feature a more extensive section than previous models to ensure greater rigidity for low flex in the motorcycle.
2024 Beta RR Racing 4T 350 Dirt Motorcycle – Technical Specifications
Engine Features
The new 2024 Beta RR Racing 4T 350 Dirt Motorcycle features a powerful 349.1ccm, single-cylinder, liquid-cooled, four-stroke engine—the bore of 88mm and stroke of 57.4mm offer outstanding performance throughout the ride. The transmission features a 6-speed gearbox that offers an amazing gear-shifting experience, backed by a wet multi-disc clutch with exceptional performance. Furthermore, the electric starting features ensure quick starting under all conditions.
Also Read:Â 2024 Beta RR Racing 2T 300 Dirt Motorcycle Review
Chassis Features
The new 2024 Beta RR Racing 4T 350 Dirt Motorcycle ensures strong molybdenum steel with a double cradle split above the exhaust port. The suspension system features a KYB hydraulic USD fork with a 48mm shaft in the front and a KYB monoshock with a progressive compound lever in the rear. The braking system features a single disc on both wheels with 2-piston floating calipers in the front and solo-piston floating calipers in the rear to ensure perfect stopping force.
2024 Beta RR Racing 4T 350 Dirt Motorcycle – Technical Specifications
Engine and transmission
| Displacement | 349.1 ccm (21.30 cubic inches) |
| Engine type | Single cylinder, four-stroke |
| Engine details | Titanium valves |
| Compression | 13.2:1 |
| Bore x stroke | 88.0 mm x 57.4 mm (3.5 inches x 2.3 inches) |
| Valves per cylinder | 4 |
| Fuel system | Injection. Synerject dual electronic injection, 42mm |
| Fuel control | Double Overhead Cams/Twin Cam (DOHC) |
| Ignition | Kokusan |
| Lubrication system | two oil pumps |
| Cooling system | Liquid |
| Gearbox | 6-speed |
| Transmission type | Chain (final drive) |
| Clutch | Wet multi-disc |
| Fuel consumption | 3.84 liters/100 km (26.0 km/l or 61.26 mpg) |
| Greenhouse gases | 89.1 CO2 g/km. (CO2 – Carbon dioxide emission) |
Chassis, suspension, brakes and wheels
| Frame-type | Molybdenum steel with a double cradle split above the exhaust port |
| Front suspension | KYB hydraulic USD fork with 48mm shaft |
| Front-wheel travel | 295 mm (11.6 inches) |
| Rear suspension | KYB mono-shock with progressive compound lever |
| Rear wheel travel | 290 mm (11.4 inches) |
| Front tire | 90/90-21 |
| Rear tire | 140/80-18 |
| Front brakes | Single disc. 2-piston floating calipers |
| Diameter | 255 mm (10.0 inches) |
| Rear brakes | Single disc. 1-piston floating caliper |
| Diameter | 240 mm (9.4 inches) |
Physical measures and capacities
| Dry weight | 107.5 kg (237.0 pounds) |
| Seat height | 940 mm (37.0 inches). If adjustable, lowest setting. |
| Overall height | 1270 mm (50.0 inches) |
| Overall length | 2180 mm (85.8 inches) |
| Overall width | 815 mm (32.1 inches) |
| Ground clearance | 320 mm (12.6 inches) |
| Wheelbase | 1490 mm (58.7 inches) |
| Fuel capacity | 9.00 litres (2.38 US gallons) |
| Reserve fuel capacity | 2.30 litres (0.61 US gallons) |
| Oil capacity | 1.60 litres (1.69 US quarts) |
Other specifications
| Color options | Red/blue/white |
| Starter | Electric |
