2023 KingQuad 500AXi Power Steering SE Camo Utility ATV Review

The world’s best sports-utility quad, designed by Suzuki, the inventor of the four-wheel ATV, boasts stunning style, unparalleled capabilities, and unmatched reliability. Now, you can be a part of the enduring KingQuad history, whose legacy is still fascinating and relevant today. The 2023 KingQuad 500AXi Power Steering SE Camo Utility ATV uses unique KingQuad features to help navigate rugged terrain.

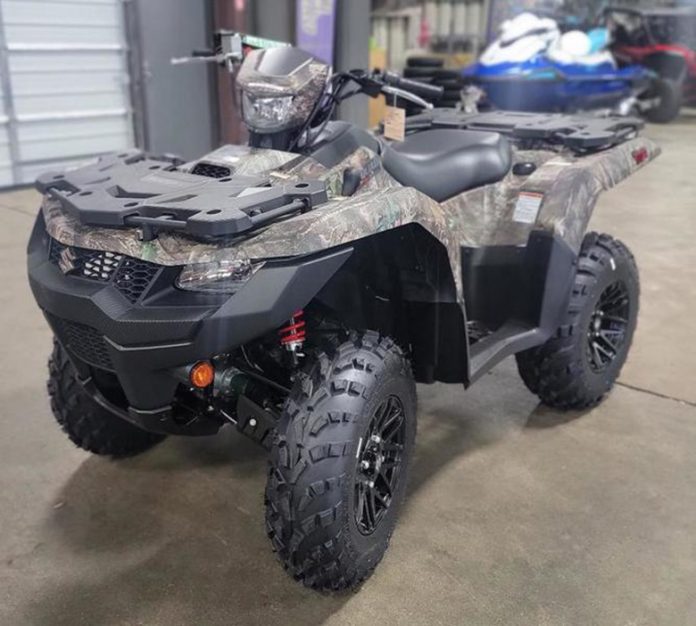

2023 KingQuad 500AXi Power Steering SE Camo Utility ATV

2023 KingQuad 500AXi Power Steering SE Camo Utility ATV – Features

Key Features

Electromechanical power steering, blacked-out cast aluminum wheels, and a genuine Timberland camouflage pattern. Thanks to fully independent suspension and ample towing capacity of new 2023 KingQuad 500AXi Power Steering SE Camo Utility ATV, you can tackle any task. EFI-fed, torque-rich engine with an efficient QuadMatic transmission and engine brakes. Headlights fenders and handlebars, an LED tail light, and a full LCD instrument panel. Adjustable cargo rack guards let you configure your King Quad for any mission like in 2019 KingQuad 500AXi Power Steering SE Camo.

Engine Features

The powerful 493cc, SOHC, four-stroke, liquid-cooled single-cylinder engine is tuned to deliver top-end solid power and a broad powerband. The engine height and low seat height result from the engine head and cylinder being canted forward for a low center of gravity. For smooth running, the engine of 2023 KingQuad 500AXi Power Steering SE Camo Utility ATV also has a balance shaft.

2023 KingQuad 500AXi Power Steering SE Camo Utility ATV

The small, four-valve cylinder head features large intake valves and straight intake ports for exceptional charging efficiency. Nut and screw valve lash adjuster makes maintenance easy. Excellent heat transfer and ring sealing are achieved using a SCEM (Suzuki Composite Electrochemical Material) coating on the lightweight aluminum cylinder, leading to exceptional combustion chamber performance.

It enhances fuel economy and throttle response throughout the rpm range. The 2023 KingQuad 500AXi Power Steering SE Camo Utility ATV quickly complies with US emissions regulations. In California, versions that meet strict emissions standards are eligible for registration with a green sticker. A large-diameter, thermostatically controlled cooling fan, and high-capacity aluminum radiator provide a stable engine operating temperature.

Transmission Features

With a gate-type shifter on the fender for high/low range selection, the QuadMatic CVT-type automatic transmission provides simplicity and versatility. With the throttle off, its advanced engine-braking system reduces freewheeling and helps maintain car control during descents.

A small torque-sensing limited-slip front differential provides substantial traction and light steering. A differential-lock system offers strong four-wheel-drive traction. Push-button controls on the handlebar make it easy to choose between 2WD, 4WD, and differential-lock 4WD. When removing dirt from the bike, the standard speed limiter can be overridden by pressing the override button on the left handlebar.

2023 KingQuad 500AXi Power Steering SE Camo Utility ATV

Chassis Features

Angular bodywork, covered in natural Timber Conti camouflage, has high clearance fenders that protect the rider from flying debris. The body panels were designed to facilitate maintenance tasks, such as checking the oil level and servicing the fuel and air filters. The 2023 KingQuad 500AXi Power Steering SE Camo Utility ATV’s chassis features thick-walled tubes and strong brackets to improve ride comfort, making the ATV easier.

Any terrain, and increases traction. The main steering characteristics are adjusted to “understeer” mode for less effort and tight turns in confined spaces. It enables the use of handlebars that are longer and more comfortable. The King Quad’s improved electric power steering system is more capable than the previous generation, resulting in significantly reduced steering effort and vibration damping.

With 6.7 inches of wheel travel, the independent double A-arm front suspension features five-way spring preload adjustment and wide-diameter gas-charged shock absorbers.

With 7.7 inches of wheel travel, the fully independent A-arm/I-beam rear suspension features large-diameter, gas-charged shock absorbers with five-way spring preload adjustment. A wider diameter rear stabilizer bar reduces rider shocks. Responsive bushing helps control body movements. For optimal braking performance, twin hydraulic front disc brakes utilize high-lever ratio, fluid lines, and high-friction brake pad materials.

The sealed, multi-plate rear brake’s footbrake lever ratio system provides excellent rider control. The clutch-type construction of the rear brake results in low maintenance, outstanding durability, and reduced unsprung weight. Lightweight cast aluminum wheels with 25-inch high-traction Carlisle tires are unique. The comfortable T-shaped seat from Suzuki allows riders freedom of movement in challenging or high-speed terrain. Protective guards made of solid plastic cover the front and rear half-shafts.

Utility/ Convenience Features

A 35-watt handlebar illuminates the direction in which you are steering the ATV-mounted lamp. The 2023 KingQuad 500AXi Power Steering SE Camo Utility ATV’s unique bodywork features dual 35-watt headlights with high and low settings. ATV’s stunning, low-draw LED taillight saves energy while increasing low-light visibility. With the King Quad’s large towing capacity (up to 1322 pounds), choosing the cargo you want to haul is easy with a receiver-type trailer hatch installation.

Winch installation is simplified by wire conduit and winch-ready mounts. The multi-function instrument panel offers servicing reminders based on mileage or running time and has improved appearance and visibility. The instrument panel has LCD readouts for fuel level, driving range, drive mode, twin trip meter, hour meter, fuel level, and clock. There are LED indicators for high, low, neutral, reverse, 2WD/4WD, differential off 4WD, and LED warnings for fuel injection and engine temperature.

An eighteen-amp maintenance-free battery is provided by a high-output, three-phase charging system with plenty of power for easy starting and equipment use. As standard, there is a sealed 12V accessory outlet. The 17.5 L (4.6 gallon) gasoline tank is low in the center of gravity. It has a ratchet-style filler cap (which opens easily for refilling and prevents overtightening) and a vacuum-operated petcock.

Excellent load capacity is offered by the centrally located 4.0-liter storage compartment at the rear of the ATV, which sits alongside the left side compartment of the already existing 4.0-liter. The front storage section, which holds 2.8 liters and is waterproof, has an easy-to-access screw.

Front and rear reinforced steel-tube cargo racks have a wrinkle-resistant paint finish for durability. High-impact polycarbonate guards on the cargo rack protect cargo from scratches while also improving the aesthetics of the quad. These shields can be easily detached to mount Suzuki accessories or other equipment directly. Protection is provided by an entire floor that includes high footpegs.

2023 KingQuad 500AXi Power Steering SE Camo Utility ATV

Special Features

Twelve months of limited coverage. The extended warranty period and additional benefits are offered by Suzuki Extended Protection (SEP). Winches, windshields, front and rear bumpers, metal skid pans, rack extensions, utility boxes, and more are among the Suzuki Genuine Accessories.

2023 KingQuad 500AXi Power Steering SE Camo Utility ATV – Price

The new 2023 KingQuad 500AXi Power Steering SE Camo Utility ATV is available at 9,999 only.

2023 KingQuad 500AXi Power Steering SE Camo Utility ATV – Technical Specifications


Engine 493cc (30.1 cubic in.), 4-stroke, liquid-cooled, 4-valve, OHC single cylinder
Bore x Stroke 87.5 mm x 82.0 mm (3.40 in. x 3.20 in.)
Compression Ratio 9.9:1
Fuel System Suzuki electronic fuel injection
Starter Electric
Lubrication Wet sump


Transmission Automatic variable ratio (V-belt), with high/low-range and reverse
Clutch Dry shoe, automatic, centrifugal type
Driven Wheels 2WD, 4WD and 4WD Differential Lock
Final Drive Shaft drive


Suspension Front Independent, double wishbone, coil spring, gas charged, and oil damped with 5-way preload adjustable shock absorbers.
Suspension Rear Independent, double wishbone, coil spring, gas charged and oil damped with 5-way preload adjustable shock absorbers
Brakes Front Disc brakes, twin rotors
Brakes Rear Sealed oil-bathed multi-disc
Tires Front AT25 x 8-12, tubeless type x 2
Tires Rear AT25 x 10-12, tubeless type x 2
Fuel Tank Capacity 17.5 L (4.6 US gal.)
Color True Timber Kanati Camouflage


Ignition Electronic ignition (transistorized)
Headlight 12V 35/35W x 2 fender-mounted, 12V 35W x 1 handlebar-mounted
Tail Light LED


Overall Length 2150 mm (84.6 in.)
Overall Width 1215 mm (47.8 in.)
Overall Height 1285 mm (50.6 in.)
Wheelbase 1285 mm (50.6 in.)
Ground Clearance 260 mm (10.2 in.)
Seat Height 920 mm (36.2 in.)
Curb Weight 324 kg (714 lb.), 325 kg (716 lb.) CA model


Warranty 12-month limited warranty
Extension More extended coverage periods with other benefits are available through Suzuki Extended Protection (SEP)
