Review Specs Pics of KTM 390 Duke 2017

The newly launched KTM 390 Duke 2017 adds another level of motorcycling. It gives maximum riding pleasure with nimble handling. It is the one of the lightest bike in the world with powerful and state-of-the-art technology. It ensures the thrilling euro ride with exceptional grip thanks to its new combination of wheels and tires.

KTM 390 Duke 2017

KTM 390 Duke 2017 – Specification, Price and Pics

Powerful, Smooth-Running Single

The newly launched KTM 390 Duke 2017 superbike features a state-of-the-art single cylinder engine with the twin overhead camshaft. It uses the latest material and production technologies to deliver bountiful torque and excellent acceleration. This engine also provides outstanding fuel economy making this bike suitable for everyday use. It offers the power of 44 horsepower or 32kW with the dry weight of 149 kg. The new exhaust system contains throttle bodies of 46 mm offers best fuel injection system. This exhaust system meet all the Euro 4 emission restrictions and sound regulation. It includes link pipe and silencer as well. The new Ride-by-Wire system guarantees the smooth throttle response and perfect application of readily available and plentiful torque. It also electronically translates the throttle commands from the rider onto the throttle valve positions perfectly suited to the riding conditions. The new engine of KTM 390 Duke 2017 comes with four valves in a cylinder head. They are actuated by the two overhead camshafts and ultra-hard carbon-coated cam followers. It offers reliability and longevity with the high power output. This super bike matches all the A2 driver’s license requirements plus it has the high power-to-weight ratio. This new slipper clutch opens when the back-torque of the engine becomes too high. It also supports when rider opens the throttle.

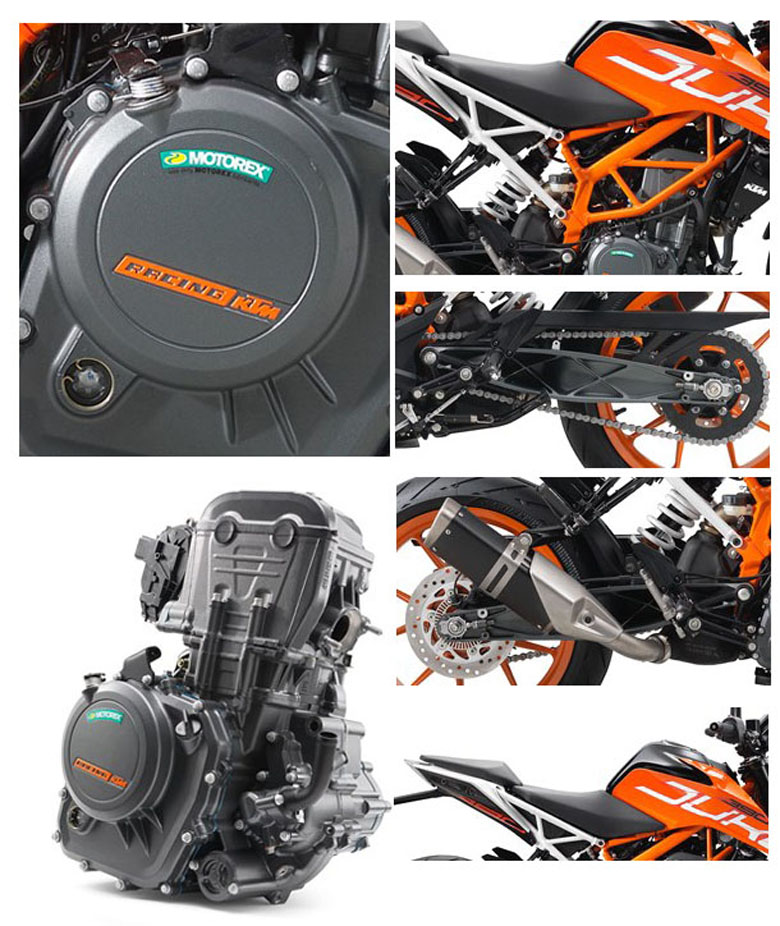

KTM 390 Duke 2017 Engine


The recently launched KTM 390 Duke 2017 superbike has state-of-the-art chassis with the lightweight steel trellis frame. All of the masses are grouped closure to the centre of gravity to maximise the manoeuvrability and precision. This bike features 17 inches of cast light alloy wheels, which are fitted with the best tires. The wheels are 110 mm wide at the front and 150 mm at the rear. Their grip level selects the tires. The new die-cast swingarm is designed and produced according to the same standard as the one used in 690 Duke R. This light alloy is direct with the WP shock absorber excel in extreme torsional stiffness and excellent tracking stability. The shock absorber gives the best performance and maximum feedback. The new preload is adjustable resulting in well-balanced suspension. This new sports bike has state-of-the-art two-channel Bosch ABS that helps the rider to have a best-stopping power. This new ABS also monitors the effect of the potent brake system with the radially-bolted with a 4-pisotn calliper and 320 mm of disc diameter. The ABS of the bike are also disengaged able. The new superbike has 390 have a high-quality upside-down fork with the WP Suspension that uses the latest open-cartridge technology that has little maintenance. It is lightweight and has a broad spectrum of use for all demands.

Outstanding Style

The newly launched KTM 390 Duke 2017 superbike has LED headlight with the aggressive front and best graphics. The new sleek fuel tank and various high-quality cast parts make this bike a fantastic bike among the KTM Bikes. Like the 1290 Super Duke R KTM, this little brother is also very famous among the bike lovers. This bike gives plenty of space and freedom of movement. It also provides excellent cornering experience. It ensures optimum control and maximum feedback. The relaxed seat position provides the perfect overview all day long. There are different modes for various assistance system that can be selected using an illuminated menu switch on the left side of its handlebar. These modes can be chosen by using the up and down menu selection.

KTM 390 Duke 2017

Low Fuel Consumption

The newly launched KTM 390 Duke 2017 bike has 13.4 litres of the sleek fuel tank that offers the rider with the perfect knee contact, and it also gives long range ride. This engine provides the little consumption ride even at high speed. It has best state-of-the-art injection electronics with the close ratio, 6-speed transmission with the impressive performance plus low fuel consumption. Thanks to the regulated catalytic converter it gives minimal emissions.

Everything under Control

The newly launched KTM 390 Duke 2017 comes with the best TFT display. It has a multi-color combination of information that provides relevant data. As the engine changes rev, the display bars changes colour. This new display can automatically adapts its illumination to the ambient light. The rider can also connect his smartphone with the bike and can receive incoming calls and can control the audio player. The new LED headlight gives a clear and bright light like the KTM 125 Duke 2017. It features 20 LEDs that guarantees the better light than the previous models of KTM 390 Duke.

KTM 390 Duke 2017

KTM 390 Duke 2017 – Specs


Design 1-cylinder, 4-stroke engine
Displacement 373.2 cm³
Bore 89 mm
Stroke 60 mm
Power in KW 32 kW
Starter Electric starter
Lubrication Wet sump
Transmission 6-speed
Primary Drive 30:80
Secondary Gear Ratio 15:45
Cooling Liquid cooled
Clutch PASC™ anti-hopping clutch mechanically operated

KTM 390 Duke 2017 Specs


Frame Design Steel trellis frame, powder coated
Front Suspension WP upside-down Ø 43 mm
Rear Suspension WP Monoshock
Suspension Travel (Front) 142 mm
Suspension Travel (Rear) 150 mm
Front Brake Four-piston radial fixed calliper, brake disc
Rear Brake Single-piston floating calliper, brake disc
Front Brake Disc Diameter 320 mm
Rear Brake Disc Diameter 230 mm
ABS Bosch 9MB two-channel ABS
Chain X-Ring 5/8 x 1/4.”
Steering Head Angle 66 °
Wheelbase 1357 ± 15.5 mm
Ground Clearance 185 mm
Seat Height 830 mm
Tank Capacity 13.4 l
Dry Weight 149 kg

KTM 390 Duke 2017 Specs


This article provides the newly launched KTM 390 Duke 2017 superbike. It is a fantastic bike with the number of features. The engine is powerful with low consumption. The chassis is compact lightweight and durable. Don’t forget to purchase it and leave your thoughts in the form of comments.
