The 2023 KTM 150 XC-W is a true underdog in the endure arena, being in a league of its own. Its outstanding agility and unexpected power delivery, combined with KTM’s tried-and-true 2-stroke engine technology, let riders of all skill levels reach new heights. The KTM 150 XC-W is revered because it is both lightweight enough to be towed up challenging terrain and powerful enough to keep up with the class leaders.

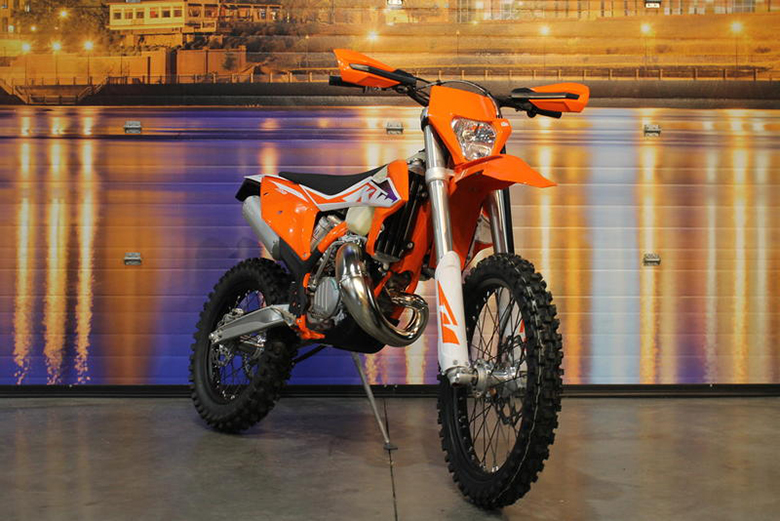

2023 KTM 150 XC-W Dirt Motorcycle – Features and Specs
The startling and powerful 150 cc 2-stroke engine results from cutting-edge design, engineering, and TPI fuel injection technology. The advantage of this tiny, lightweight 2-stroke is its accessible readability, which makes it a fantastic alternative for anyone wishing to go into more intense activity without the fear of a larger 2-stroke since it delivers class-leading power across the whole rev range better than 2021 KTM 150 XC-W model.
With its 58 mm bore, revised port timings, and advanced power valve, the cylinder of the KTM 150 EXC produces power that is both smooth and manageable. The fuel injectors that deliver gasoline to the rear transfer ports are housed in two lateral domes of the cylinder for the EFI application. The downstream injection ensures excellent fuel atomization with the upstream air. Consequently, very little fuel goes to waste, and the combustion process is more efficient, leading to fewer pollutants and lower fuel costs. The control unit receives pressure readings from an intake pressure sensor through a tiny tube at the rear of the cylinder. A complex power valve unit controls the lateral support exhaust ports of the cylinder. The configuration of the exhaust ports improves the engine’s efficiency, and the ports’ top contours have been machined for better port timing. With TPI technology, the new cylinder generates exceptional performance across the board and much more torque than its predecessor.
Crankcases and Engine Covers
The high-pressure die-casting technology that creates these tiny engine casings allows for significant weight savings while maintaining strength and longevity. As a bonus, this layout makes it possible to position the shafts such that they are directly above the vehicle’s center of gravity, maximizing both mass centralization and maneuverability.
Endure-specific wide-ratio gears allow quick and smooth shifting in the KTM 150 EXC’s PANKL RACING SYSTEMS-built 6-speed gearbox. To keep the gear shift lever joint free of mud and dirt, an innovative ‘No Dirt’ design was used for the simple reason that even mud lovers despise mud in the wrong locations.
Engine Management System
Under the seat is where the control for all 2-stroke EXC models’ engine management system (EMS) is kept. The engine control unit (ECU) determines the ignition timing while multiple sensor data, including intake air pressure, water temperature, throttle position, and ambient air pressure, select the quantity of fuel to inject. You may spend more time twisting the throttles and less time adjusting the jetting, thanks to altitude and temperature correction. If the rider installs a KTM Power Parts radiator fan, the EMS will take care of it automatically, eliminating the need for a separate thermal switch.
Radiators toward the vehicle’s midsection keep the engine cool even under extreme loads. These use CFD (computational fluid dynamics) technologies and shrewd coolant circuit layouts to keep the engine at the optimal temperature for peak performance. Above all else, the delta distributor has a big center tube for very efficient coolant flow, and it is incorporated into the frame triangle. Radiators are safeguarded by plastic fins that deflect pebbles and debris and by a bracing that distributes impact force away from the radiators.
The redesigned exhaust system is a significant factor in the enhanced power delivery and performance, and it delivers a formidable punch. The pipe uses cutting-edge 3-D stamping technology, so its form is perfected. The silencer has been redesigned with a new inner tube perforated for ventilation and lighter wool. The redesigned exhaust is an excellent match for the TPI engine, resulting in superior endure-specific performance and much more potent low-end torque compared to the carbureted model. Finally, the muffler’s plastic mounting mechanism has been swapped out for two welded aluminum brackets, resulting in a weight savings of 60 g.
Specially crafted intake snorkels in the KTM 150 EXC’s easily accessible air box provide optimum flow dynamics. The result is a sweet spot between power and responsiveness at the throttle since the engine is force-fed air. A massive Twin-Air air filter is permanently installed in a sturdy cage to maintain clean air quality.
Each KTM EXC model’s frame is made from race-derived geometry-specific Chromalloy steel for maximum stiffness and rider input. It translates to a lively handling personality and excellent stability at speed, plus FACTORY RACING flair from the bright orange finish. To ensure the longevity and steadiness of the rear fender in the case of a loop out, the subframe is constructed from ultra-light and ultra-stable aluminum profiles, weighing less than 900-gram.
The swing arm of the KTM 150 EXC is made from a single piece of aluminum and is formed in place utilizing the motorcycle’s gravity. It achieves maximum strength with minimum weight and optimal flex behavior.
KTM equips all EXC models with high-quality GIANT wheels and lightweight, CNC-machined hubs. Aluminum spoke nipples have a clever design that eliminates the need to constantly tighten the spokes, ensuring optimum stability with little weight.
MAXXIS MaxxEnduro tires are race-specification puncture-resistant and built for all-day riding comfort without sacrificing grip or performance on any surface.
For 2023, all KTM EXC models will be equipped with premium WP suspension systems designed to provide unrivaled performance and consistency for riders of all skill levels and across all terrain types.
The WP XPLOR upside-down forks are the gold standard in endure suspension, with unrivaled performance from professional and novice riders alike thanks to its fully adjustable 48 mm diameter. Compression damping may be adjusted on the left fork and rebound on the right fork with little effort.
Conical bushings between the pistons of the race-tested and fully adjustable WP XPLOR shock absorber lessen suspension fading and wear. This PDS rear suspension design is not only favored by podium contenders, but it also sets the standard for maximizing rear-wheel traction.
Forged triple clamps including an offset of 22mm are standard equipment on the KTM 150 EXC, providing a firm hold on the fork and responsive steering. The handlebar has four forward and backward settings to find the ideal posture, even on the most challenging trails.
Stopping Distance, High-tech Brembo brake calipers, and lightweight wave discs make controlling this motorcycle a breeze. These result from years of research into the optimal pad density and steel quality for durability and a consistent feel in professional racing.
Lightweight polyethylene tanks with a 14-turn bayonet-style filling lid are standard on all KTM enduro models. The injectors are supplied with gasoline directly from the integrated fuel pump, protected from harm by a 90-degree connection. The tank is transparent polycarbonate so that motorcyclists can see their gasoline levels on the go.
Ergonomics & Comfort Seat
Please, have a seat. The seat of the 2023 KTM 150 XC-W is coated in grippy black vinyl, and its design is optimized to provide riders with a full range of motion while being comfortable enough for extended periods of riding.
Adjustable NEKEN aluminum tapered handlebars are standard on all KTM XC-W models. There are four possible mounting configurations for them. You may rest easy knowing that the ODI vulcanized grip on the right side and the ODI lock-on grip on the left are standard features.
Even when dragged through deep ruts, the self-cleaning foot pegs will not get clogged with muck. In other words, you won’t lose your footing, and your boots won’t slip.
Please, have a seat. The seat of the 2023 KTM 150 XC-W is coated in grippy black vinyl, and its design is optimized to provide riders with the full range of motion while being comfortable enough for extended periods of riding.
Bodywork & Graphics Decals
The orange-coated frame and bold 90s-inspired color scheme of the 2023 KTM 150 XC-W range take design cues from the RED BULL KTM FACTORY RACING TEAM. They are applied with the tried and tested in-mold graphics application for greater friction and fade resistance, ensuring your steed will look factory-fresh even after the most demanding time on the trails.
Software & Electronics Battery & wiring harness
Time-tested electrical components, including a 2 Ah lithium-ion starting battery, are standard on the KTM 150 XC-W. Most of the electrical components in the wire harness are conveniently located in one place under the seat.
2023 KTM 150 XC-W Dirt Motorcycle – Technical Specifications
|Kick and electric starter
|Wet multi-disc DS clutch, Brembo hydraulics
|1-cylinder, 2-stroke engine
|Weight (without fuel)
|Tank capacity (approx.)
|Front brake disc diameter
|Rear brake disc diameter
|X-Ring 5/8 x 1/4″
|Central double-cradle-type 25CrMo4 steel
|WP XPLOR-USD, Ø 48 mm
|WP Xplor PDS shock absorber
|Steering head angle
|Suspension travel (front)
|Suspension travel (rear)
