Yamaha 2020 Grizzly EPS XT-R Utility ATV Review Specs Price

This XT-R Edition is prepared for an extraordinary adventure with an industrial facility introduced Warn Winch, Special Edition paint, shading coordinated wheels, and forceful Maxxis tires. Full review of Yamaha 2020 Grizzly EPS XT-R Utility ATV with its price and specification is written below.

Yamaha 2020 Grizzly EPS XT-R Utility ATV – Features and Price

Top features

New for 2020, the Yamaha 2020 Grizzly EPS XT-R Utility ATV brings considerably all the more riding energy on account of its powerful 700-class motor. It also features excellent undercarriage running large 27-inch tires, spacious ergonomics, propelled hardware, and jazzy XT-R version painted bodywork.

Yamaha 2020 Grizzly EPS XT-R Utility ATV

Yamaha’s class-driving transmission consolidates prompt reaction with cutting edge highlights like characteristic, all-wheel motor slowing down for control and certainty. The Ultramatic is demonstrated to be the most solid ATV transmission available.

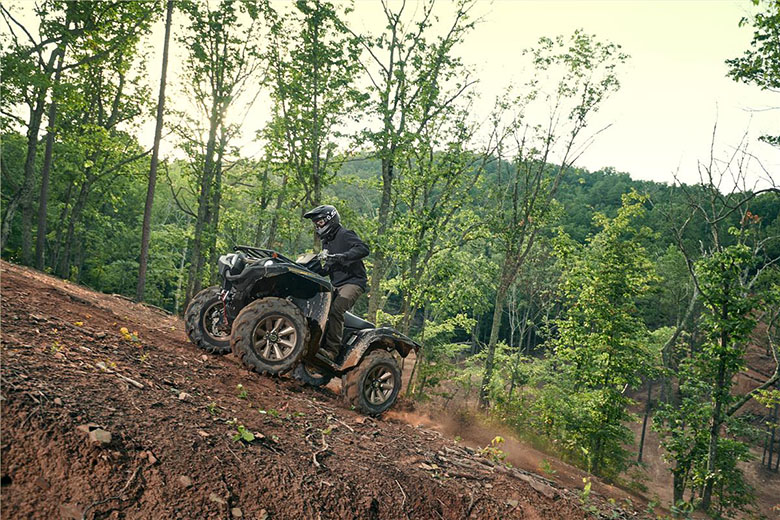

Thanks to the ground leeway and customizable suspension, the Grizzly EPS XT-R handles unpleasant landscape easily. Notwithstanding the long-travel stuns, wide-bend an arms and full-body slip plates guarantee the Grizzly is prepared to prop up when you are. Decreased weariness, superb control, and trail feel all come norm with Grizzly’s best-in-industry, speed-delicate Electric Power Steering (EPS).

Not at all like such an essential number of 4WD ATV frameworks available that put a PC in control. The Yamaha On-Command framework keeps the rider in charge with selectable 2WD, 4WD limited-slip, and 4WD with diff. Lock modes to guarantee the Grizzly EPS XT-R conveys the capacity to satisfy the rider’s needs.

Yamaha 2020 Grizzly EPS XT-R Utility ATV


Grizzly’s Ultramatic transmission includes a gated shifter, double range (Hi/Lo) drive in addition to switching gear, and is the most progressive and robust CVT drive framework accessible. A programmed radial grasp keeps up consistent belt pressure for decreased belt wear, and a sprag grip conveys standard all-wheel motor slowing down. To deal with almost any landscape efficiently, the Grizzly EPS XT-R offers a noteworthy 11.8 crawls of most extreme ground freedom and full-length composite slip plates for highest underside assurance.

For the path rider searching for energy in each ride, the perfect motor should offset enormous bore power with a solid midrange that gives a prompt reaction. The Grizzly EPS XT-R includes a strong 700-class motor with superior force, power conveyance, and motor character for forceful recreational riding. To keep up clean-running implementation for quite a long time, the Yamaha 2020 Grizzly EPS XT-R Utility ATV R utilizes a tempered steel exhaust framework and highlights a screen-type flash arrestor for the extraordinary force with least commotion yield.

Yamaha 2020 Grizzly EPS XT-R Utility ATV

The three-position On-Command 4WD framework lets you switch between 2WD, constrained slip 4WD, and a completely bolted differential 4WD all with the straightforward press of a catch. A supersede button permits the motor to arrive at most extreme rpm in full diff lock mode. A straight driveshaft design takes out U-joints for diminished erosion, commotion, vibration, and upkeep.

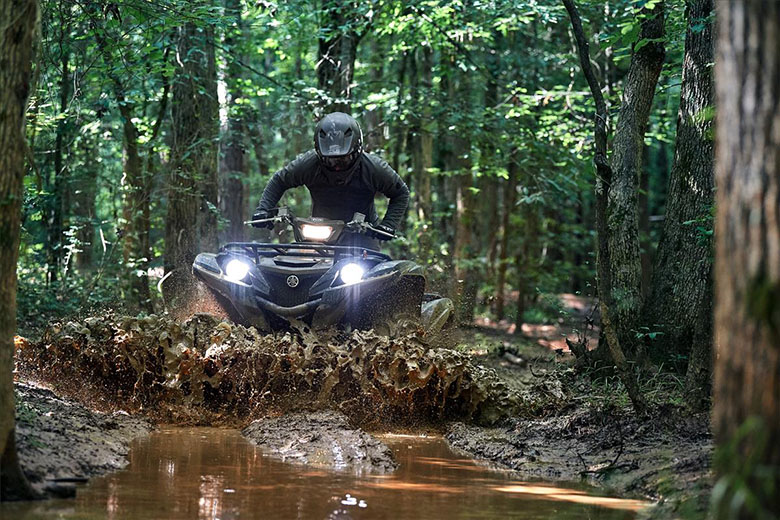

Tackle mud and water due to the Grizzly’s high-mounted air admission design. The plan builds force while giving extra space to onboard stockpiling and simple apparatus less adjusting of the air channel. A different admission lot diminishes drive framework temperatures and helps with shielding water and flotsam and jetsam from entering the drive case, as well.

Slow-speed specialized riding can put a lot of warm requests on a fluid-cooled engine. So, the Grizzly XT-R includes a high-limit radiator with fan help that conveys a lot of wind current for most extreme cooling proficiency. And, it’s situated high in the casing for ideal security. Incredible and predictable slowing down comes standard on each Grizzly EPS XT-R on account of four-wheel water-driven circle brakes with unrivaled slowing down feel.

Yamaha 2020 Grizzly EPS XT-R Utility ATV

For deep mud, scree inclines, and some other helpless foothold territory out there, the Yamaha 2020 Grizzly EPS XT-R Utility ATV comes prepared to move with large 27-inch Maxxis Zilla tires mounted on robust and lightweight combination edges. The Zilla tires utilize double compound sidewalls and an extra-intense cadaver development to deal with anything you can toss at them. Also, with coordinated front and back tire estimating, substitution on the path is rearranged.

The Grizzly EPS XT-R comes pre-wired for Yamaha’s selective Adventure Pro GPS framework, opening the following degree of the trail-prepared route. This cutting-edge GPS unit consolidates a scope of capacities into a solitary, tight 7-inch full-shading show. Search, download, record, and offer path courses. Challenge your companions to time preliminaries on spared courses. Furthermore, with Yamaha’s particularly incorporated programming, the Adventure Pro framework shows propelled vehicle information with outstanding clearness.

Yamaha 2020 Grizzly EPS XT-R Utility ATV


Free twofold wishbone suspension, with 7.6 inches of front wheel travel and 9.1 inches at the back, gives incredible rider comfort even on the hardest path, because of nitrogen-accused stuns of 5-way flexible preload. A liberal 4.76-gallon fuel tank is situated under the seat for excellent mass centralization and taking care. Limit weakness and assault each corner with Yamaha’s Electric Power Steering (EPS), the business’s best parity of electric directing help, and positive path input.

A long, extravagant seat improves rider comfort for expanded days investigating each trail, with a lot of space for the rider to move forward or backward during forceful riding. The Grizzly EPS XT-R includes an instrument bunch with huge all-LCD readouts for permeability. At the point when matched with Yamaha’s Adventure Pro GPS framework, considerably more information is accessible for the rider, introduced across the bright full-shading show.

Yamaha 2020 Grizzly EPS XT-R Utility ATV


The Yamaha 2020 Grizzly EPS XT-R Utility ATV transmission utilizes its cooling admission to keep up appropriate temperatures. It also has a larger than average belt to deal with the force of the enormous engine, and Yamaha’s unique sprag clasp to keep up consistent belt pressure. The final product is a drivetrain worked for a considerable length of time of difficulty free assistance that leaves the opposition in the residue and is upheld by the enterprises just 10-Year V-Belt Limited Warranty.

Rough composite front guard opposes scratching and won’t rust, while infusion shaped bumpers and CV joint guards secure against rock and garbage harm. Driven innovation utilizes less force, makes more splendid, more keen enlightenment, and offers lifetime solidness. A handlebar-mounted halogen work light furnishes further wisdom that moves with rider contribution for fantastic perceivability.

Yamaha 2020 Grizzly EPS XT-R Utility ATV

The Grizzly EPS XT-R was built working together with a scope of frill for flawless fit and capacity, for almost every sort of ride you can discover. With a standard 12V force point, you can keep gadgets charged, as well. Rough, huge measurement steel payload racks with durable wrinkle paint finish can pack a sum of 308 pounds joined (110 lbs. front, 198 lbs. back). Three on-board stockpiling compartments keep things secure.

Focus mounted, substantial two-inch recipient comes standard on Grizzly and can tow more than 1300 pounds. Likewise, with other Yamaha ATVs and Side-by-Sides, the Grizzly EPS XT-R is collected in the USA to satisfy Yamaha’s demanding guidelines for sturdiness and unwavering quality.

Yamaha 2020 Grizzly EPS XT-R Utility ATV

New for 2020

The Grizzly EPS XT-R is a definitive Yamaha ATV, with upgraded landscape ability and certainty. It is because of an industrial facility introduced WARN Pro Vantage 2500 winch, aluminum combination wheels mounting 27-inch Maxxis Zilla tires in coordinated front and back sizes. Yamaha’s restrictive Adventure Pro GPS availability is all enveloped by top-notch painted bodywork and one of a kind XT-R designs.

Yamaha 2020 Grizzly EPS XT-R Utility ATV – Price

The new 2020 Grizzly EPS XT-R is available at $10,999 in two color options;

  • Titanium Bronze/Tactical Black w/Winch
  • Aluminum Wheels

Yamaha 2020 Grizzly EPS XT-R Utility ATV

Yamaha 2020 Grizzly EPS XT-R Utility ATV – Technical Specifications


Engine Type 686cc liquid-cooled SOHC 4-stroke
Bore x Stroke 102.0mm x 84.0mm
Compression Ratio 10.0:1
Fuel Delivery Yamaha Fuel Injection (YFI), 44mm
Transmission Ultramatic V-belt with all-wheel engine braking; H, L, N, R, P
Final Drive On-Command 3-way locking differential; 2WD, 4WD, closed 4WD; shaft

Yamaha 2020 Grizzly EPS XT-R Utility ATV Specs


Suspension / Front Independent double-wishbone; 5-way preload adjustment, 7.6-in travel
Suspension / Rear Independent double-wishbone with anti-sway bar; 5-way preload adjustment, 9.1-in travel
Brakes / Front Dual hydraulic disc
Brakes / Rear Dual hydraulic disc
Tires / Front AT27 x 10-14 Maxxis® Zilla MU01
Tires / Rear AT27 x 10-14 Maxxis® Zilla MU01

Yamaha 2020 Grizzly EPS XT-R Utility ATV Specs


L x W x H 81.5 inches x 49.2 inches x 50 inches
Seat Height 36.6 inches
Wheelbase 49.2 inches
Turning Radius 146.0 inches
Maximum Ground Clearance 11.8 inches
Fuel Capacity 4.8 gallons
Wet Weight 780 lb
Rack Capacity 110 lb (front) / 198 lb (rear)
Towing Capacity 1322 lb


Warranty 6 Month (Limited Factory Warranty) – 10-Year V-Belt Limited Warranty


Grizzly can have fun on the trails. It has a sporty and playful sensation that is rare on four × four quads. This Yamaha 2020 Grizzly EPS XT-R Utility ATV allows Yamaha owners to explore even more with even more capacity and confidence, as well as share their experiences with friends and family.
