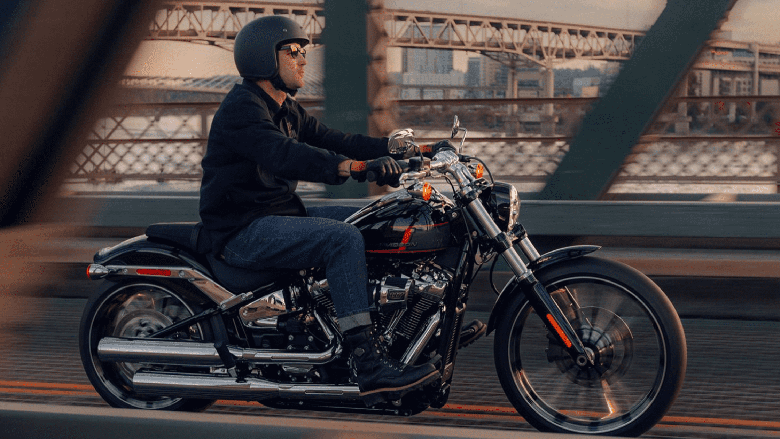

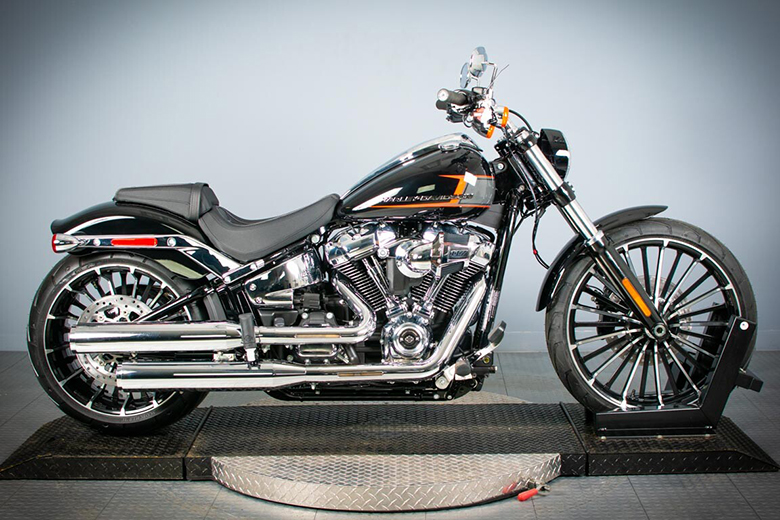

The 2024 Harley-Davidson Breakout 117 returns with a bold, stretched-out stance and aggressive styling. It combines high-performance Milwaukee-Eight® 117 muscle with shimmering chrome finishes, capturing attention with every ride. The new five-gallon fuel tank with a sleek chrome console adds to the long-and-low cruiser silhouette, while the taller handlebar riser improves rider reach and control.
It’s a bike where classic Harley heritage meets modern design—perfect for city cruising or countryside exploration.
2024 Harley-Davidson Breakout 117 Cruisers – Features and Specs
Milwaukee-Eight 117 Engine
It is Harley-Davidson’s most powerful regular-production V-Twin, offering immense torque and a commanding street presence.
Heavy Breather
The forward-facing exposed air intake increases airflow for enhanced engine performance.
Also Read:Â 2024 Harley-Davidson Softail Standard Cruisers Review
Chrome Appeal
Chrome accents elevate the look, adorning the fender struts, side panels, exhaust shields, turn signals, mirrors, and air intake system.
Wheels
Featuring 21-inch front and 18-inch rear cast aluminum wheels, the 26-spoke design boasts black finishes with precision-machined highlights.
Two-Into-Two Exhaust
The high-performance, offset dual exhaust looks aggressive, boosts mid-range torque, and delivers a rich, thunderous note.
Also Read:Â 2024 Harley-Davidson Pan-America Special Adventure Touring Bike Review
Chassis
The refined Softail chassis is lighter and stiffer, improving handling while keeping the traditional hardtail appearance.
2024 Harley-Davidson Breakout 117 Cruisers – Price
The new 2024 Harley-Davidson Breakout 117 Cruiser is available at $22,499 only.
2024 Harley-Davidson Breakout 117 Cruisers – Technical Specifications
Dimensions
| Length | 93.3 in. |
| Seat Height, Laden | 25.6 in. |
| Ground Clearance | 4.5 in. |
| Rake | 34 |
| Trail | 5.7 in. |
| Wheelbase | 66.7 in. |
| Tire, Type | Michelin Scorcher 11, front and rear |
| Tires, Front Specification | 130/60B21,63H,BW |
| Tires, Rear Specification | 240/40R18,79V,BW |
| Fuel Capacity | 5 gal. |
| Oil Capacity (W/Filter) | 5 qt. |
| Weight, As Shipped | 653 lb. |
| Weight, In Running Order | 683 lb. |
Engine
| Engine | Milwaukee-Eight 117 |
| Bore | 4.075 in. |
| Stroke | 4.5 in. |
| Displacement | 117 cu in |
| Compression Ratio | 10.2:1 |
| Fuel System | Electronic Sequential Port Fuel Injection (ESPFI) |
| Exhaust | 2-into-2 staggered; catalyst in muffler |
Performance
| Engine torque testing method | J1349 |
| Engine Torque | 123 ft-lb |
| Engine Torque (RPM) | 3500 |
| Horsepower | 101 HP / 75 kW @ 4750 rpm |
| Lean Angle, Right (DEG.) | 26.8 |
| Lean Angle, Left (DEG.) | 26.8 |
| Fuel Economy Testing Method | Estimated City/Hwy |
| Fuel Economy | 47 MPG |
Drive train
| Primary drive | Chain, 34/46 ratio |
| Gear Ratios (Overall) 1st | 9.311 |
| Gear Ratios (Overall) 2nd | 6.454 |
| Gear Ratios (Overall) 3rd | 4.793 |
| Gear Ratios (Overall) 4th | 3.882 |
| Gear Ratios (Overall) 5th | 3.307 |
| Gear Ratios (Overall) 6th | 2.79 |
Chassis
| Front fork | Dual-bending valve 49 mm telescopic with aluminum fork triple clamps; dual-rate spring |
| Rear Shocks | Hidden, free piston, coil-over monoshock; 43mm stroke; toolless hydraulic preload adjustment |
| Wheels, Front Type | Gloss black, 26-spoke cast aluminum |
| Wheels, Rear Type | Gloss black, 26-spoke cast aluminum |
| Brakes, Caliper Type | 4-piston fixed front and 2-piston floating rear |
| Brakes, Rotor Type | Front and rear black, Split 7-spoke floating rotors |
Electric
| Lights (as per country regulation), Headlamp, Tail/Stop/Front Signal Lights | All LED, low beam, high beam, and signature position lamp; Bullet-style, dual-element incandescent stop/tail/turn signals; Incandescent bullet turn signals |
| Gauges | 2.14-inch viewable area LCD with speedometer, gear, odometer, fuel level, clock, trip, range, and tachometer indication |
Rider safety enhancements
| Anti-lock brake system (ABS) | Included |
| Traction Control System (TCS) | Included |
