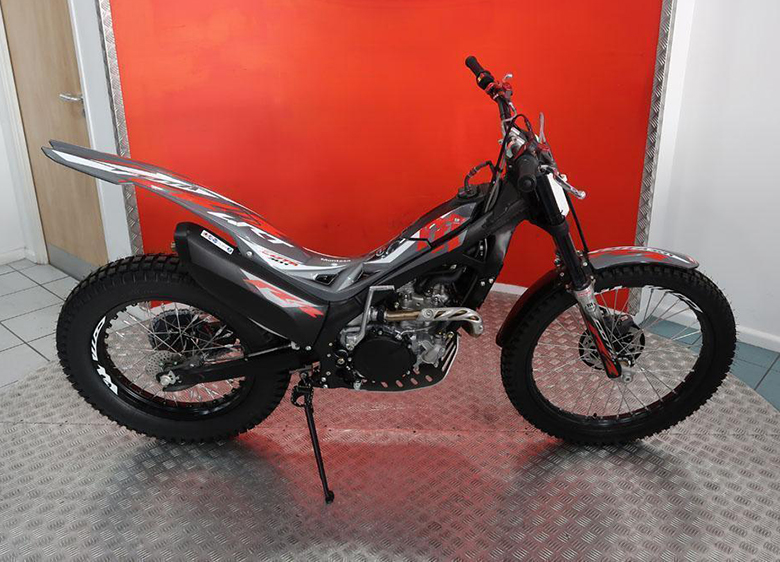

2022 Montesa Cota 301RR Honda Dirt Bike Review Specs

Montesa, which has a history that is as long as Honda’s, celebrates its 75th anniversary with a limited-edition model of their elite trials vehicle that features a brand-new design. The 2022 Montesa Cota 301RR Honda Dirt Bike, produced in the trials capital of Barcelona, Spain, now sports a red fuel tank in homage to early Montesa models and a gold “75th Anniversary” symbol on the fuel-tank cover and fork legs. This model is geared at racing and borrows many parts and technological innovations from Toni Bou’s 28-time FIM World Champion motorcycle. It also has an advanced Tech fork with aluminum stanchions and a solid yet maneuverable 299cc four-stroke engine.

Trials riders are a special kind of motorcycle rider. Although many riders dabble in it, to be genuinely outstanding, you need ability, discipline, and the correct equipment. We’re thrilled to offer the Montesa Cota 301RR—a bike that blends Honda’s illustrious engineering and quality with Montesa’s famed trials expertise—to trials riders who want the finest. Along with its quality suspension, 298cc liquid-cooled four-stroke Honda engine, and custom graphics and color scheme honoring Montesa’s recent 75th anniversary, the 2021 Montesa Cota 301RR is exceptional.

2022 Montesa Cota 301RR Honda Dirt Bike – Features and Specs

2022 Montesa Cota 301RR Honda Dirt Bike

Engine / Drivetrain

The Trial2 World Championship’s maximum displacement is 298cc, with a bore and stroke measurement of 81.5 mm and 57.2 mm, respectively. With the abrupt acceleration bursts typical of trial riding, power is skewed to the low and middle for the smooth, tractable delivery essential for keeping traction in tricky circumstances. Yet Vibration is reduced by the three-ring piston and the specifically made crankshaft. Electronic fuel injection that is programmed for smooth operation under various circumstances. For optimal torque across the rpm range, a lightweight aluminum muffler with a big inner tube and considerable overall volume is recommended. For protection, a carbon fiber exhaust shield is used. On the right side of its engine, the guard made of lightweight yet durable carbon fiber shields the clutch. With its large, 2.3 mm crankcase breather tube, the decompression system reduces engine braking and aids in maintaining traction when decelerating.

2022 Montesa Cota 301RR Honda Dirt Bike

Chassis / Suspension

The aluminum stanchions of the 39 mm Formula Tech fork contribute to its reduced weight. The Pro-Link® rear suspension system absorbs the roughest difficulties in the trial portions with a single Showa shock. For Swing arm and frame are made of lightweight aluminum for agile handling. Yet Hubs made of aluminum reduce unsprung weight for simple steering and consistent handling. And Front and rear rotors have a petal-like design for the best modulation and braking. Powerful and reliable braking is provided by a four-piston front caliper, which is shielded by plastic. The engine is protected from strikes with pebbles, which are a frequent occurrence in trials, by a large aluminum skid plate with a rubber cushion. While waiting for their time to enter a segment, the rider may conveniently store their bike using an aluminum side stand. Tank made of aluminum. To better shield the rider from mud and water in transfer portions, the rear fender widens towards the end. A minimalist LED headlight provides additional illumination at night (not road legal).

2022 Montesa Cota 301RR Honda Dirt Bike

2022 Montesa Cota 301RR Honda Dirt Bike – Technical Specifications

Engine and transmission

Displacement 298 ccm (18.18 cubic inches)
Engine type Single-cylinder, four-stroke
Compression 10.4:1
Bore x stroke 81.5 x 57.2 mm (3.2 x 2.3 inches)
Valves per cylinder 4
Fuel system Injection. PGM-FI, 28mm throttle body
Fuel control Single Overhead Cams (SOHC)
Ignition Electronically controlled digital transistorized
Cooling system Liquid
Gearbox 5-speed
Transmission type Chain (final drive)
Clutch Multi-plate in oil bath
Driveline #520 Chain, 10T/41T

Chassis, suspension, brakes, and wheels

Frame type Aluminum
Rake (fork angle) 24.5°
Trail 63 mm (2.5 inches)
Front Suspension 39mm Tech telescopic fork with aluminum tubes; preload, compression damping, and rebound damping adjustment
Front-wheel travel 168 mm (6.6 inches)
Rear Suspension Pro-Link ® system with Showa ® shock; preload rebound damping adjustment
Rear wheel travel 170 mm (6.7 inches)
Front tire 80/100-21
Rear tire 120/100-R18
Front brakes Single disc. 4-piston caliper and sintered metal pads
Diameter 185 mm (7.3 inches)
Rear brakes Single disc. 2-piston caliper and sintered metal pads
Diameter 150 mm (5.9 inches)
Wheels Michelin tires. 32-spoke wheels.
Seat Removable seat.

2022 Montesa Cota 301RR Honda Dirt Bike

Physical measures and capacities

Dry weight 73 kg (161.0 pounds)
Seat height 678 mm (26.7 inches) If adjustable, lowest setting.
Overall height 1140 mm (44.9 inches)
Overall length 2016 mm (79.4 inches)
Overall width 830 mm (32.7 inches)
Ground clearance 310 mm (12.2 inches)
Wheelbase 1321 mm (52 inches)
Fuel capacity 1.89 liters (0.50 US gallons)

Other specifications

Color options Black/orange
Starter Kick
