2021 X-ADV Honda Adventure Bike Review Specs

Our 2021 X-ADV Honda Adventure Bike took the initiative, broke the records, and led the industry with its classy features. It’s a two-wheeled SUV that defies convention by combining the powers and performance of an adventure motorbike with the comfort, convenience, and commuting ability of a large-capacity scooter. The X-ADV is a luxury urban explorer capable of jumping from city block to off-road path (and back) instantly, making every ride a unique experience. And we’ve improved every aspect of it.

2021 X-ADV Honda Adventure Bike

2021 X-ADV Honda Adventure Bike – Features


The X-liquid-cooled ADV’s SOHC 8-valve parallel twin-cylinder engine is designed to deliver snappy performance in the low-to-mid-range. Its comparatively long-stroke design and specifically shaped combustion chambers work in tandem with the high-inertial mass crankshaft to provide enormous quantities of accessible torque at low rpm. A forward cant lowers the center of gravity for maximum stability; thanks to the 2021 upgrade, it is now 1.4kg lighter than before.

The engine creates more power and revs harder for longer, thanks to a perfectly balanced 5% adjustment in valve duration (which varies between the two cylinders), as well as the inclusion of Throttle By Wire (TBW) and exhaust upgrades. Along with the increased power, it also has a higher torque output of over 5,000rpm.

2021 X-ADV Honda Adventure Bike

Peak power is increased by 3kW to 43.1kW at 6,750rpm, with maximum torque at 4,750rpm. Shorter gear ratios over first, second, and third gears go hand in hand with the performance rise, enhancing standing start and roll-on acceleration through each gear. The 2021 X-ADV Honda Adventure Bike will cover 20m in 1.7s, 50m in 3.2s, and 60km/h with the torquey engine rotating at just 2,500rpm. The bigger gears, i.e., fourth, fifth, and sixth gears, have been slightly raised to enhance fuel efficiency and allow more flexible use of the more excellent power figure.

A35kW variant is offered for A2 license holders, which may be readily changed to the full power version by a Honda dealer at the right time. Similarly, by remapping the ECU at a Honda dealer, the full power version may be limited to 35kW.

Twin balancers dampen vibration caused by higher rpm inertia without interfering with the engine’s erratic firing sequence and 270° phased crankshaft. The bore and stroke dimensions are 77 x 80mm. When feasible, components are designed to perform several functions: the camshaft powers the water pump, while one of the balancer shafts operates the oil pump. By reducing the number of parts, the engine remains light, efficient, and dependable.

The 2021 X-ADV Honda Adventure Bike engine consumes gasoline slowly, with a recorded consumption of 27.8km/l (WMTC mode) and a possible range of 366km from the 13.2-liter fuel tank. It is also now compatible with EURO5 rules, which went into effect on January 1, 2020, and set much tighter engine emissions criteria than EURO4. These criteria include significant reductions in allowed carbon monoxide emissions, a 40% reduction in total hydrocarbon emissions, harsher misfire detection, and implementation of a particulate matter restriction.

Engine Electronics

Throttle-by-wire provides four basic riding modes as well as USER customization Honda Selectable Torque Control has significantly finer control and three degrees of involvement. With TBW now regulating engine performance and character, the rider may select from four modes that cover all riding circumstances.

2021 X-ADV Honda Adventure Bike

The left-hand switchgear controls mode selection. Standard provides a healthy middle ground between engine power delivery, engine braking, and HSTC intervention, with the most aggressive amount of ABS involvement. With little HSTC involvement and strong ABS, Sport provides more aggressive engine power delivery and braking. RAIN sends poor engine power delivery and engine braking, as well as heavy HSTC and ABS input. Gravel uses strong power and engine braking, as well as low HSTC and ABS. USER provides personalized choices of low/medium/high engine power delivery and engine braking, as well as low/medium/high/off HSTC.

Styling & Equipment

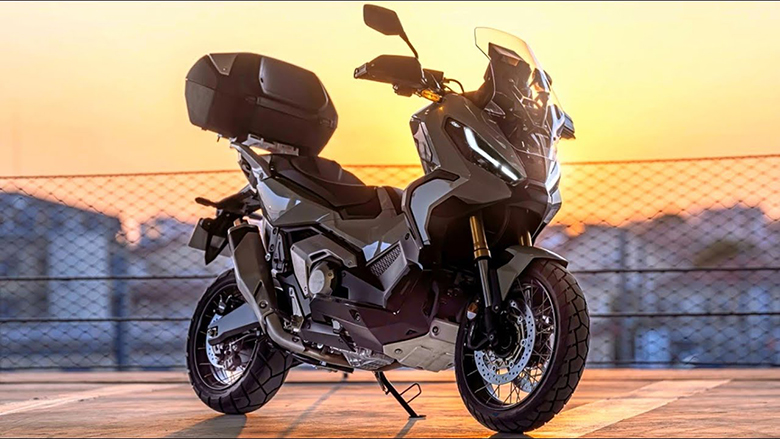

The X-distinctive ADV’s appearance, conceptualized and developed by Honda’s R&D team in Italy, has been sharpened and streamlined extensively for 2021. The profile is purposefully upright, yet each body panel has been re-chiseled to achieve a sharper, more powerful intent. A side-by-side comparison with the previous generation demonstrates how sensitive the new style has become. Stronger, more assertive, and colder. Simply put more 2021 X-ADV Honda Adventure Bike. The redesigned dual LED headlights now have Daytime Running Lights (DRL), which automatically adjust to ambient light intensity and provide bright, evident light, increasing safety. The illumination is all LED.

Regarding ergonomics, the 820mm seat height and 910mm broad handlebar offers a high eye point and excellent sight, while the seat boasts re-shaped, thinner shoulder contours for easier ground reach. The X-redesigned ADV’s screen adjusts without tools through 5 levels from low to high to maximize or minimize airflow when commuting or touring. With an 11° rake between the highest and lowest locations, the overall height difference is 139mm.

The innovative Honda Smartphone Voice Control System, which connects the rider to their smartphone while on the road and provides voice management of phone calls, email, music, and navigation, is integrated into the X-rider ADV’s interface and displayed through the 5-inch TFT display. A helmet-mounted headset is required, and the smartphone connects to the dash through Bluetooth; system administration is also available via buttons on the left switchgear.

Tough plastic hand shields deflect wind and rain while protecting hands and levers from stones when riding off-road. The underbelly is covered with a shot-peened 2.5mm thick aluminum bash plate.

2021 X-ADV Honda Adventure Bike

The under-seat baggage capacity expands by 1L to 22L, allowing for a full-face helmet, and is lighted by an inbuilt LED with a textured surface that provides consistent illumination without glare. The car-type 12V ACC plug has been replaced by a USB charging socket, which is positioned at the back of the compartment. The parking brake has been relocated from the right fairing to the right handlebar, making room for a handy and easily accessible glove compartment. A tilt sensor-equipped center stand is standard, allowing the 2021 X-ADV Honda Adventure Bike to be parked on an incline without the risk of tipping over.

The 2021 X-ADV Honda Adventure Bike features a Smart Key, which sits in the rider’s pocket and eliminates the need for a key for the ignition, fuel cap, and seat. With the Smart Key present, one press of the knob-style central switch powers it up and allows it to turn, allowing the rider control over the ignition/steering lock and the fuel cap and seat through two rocker switches. It also offers an ‘answer back’ function that flashes the indicators for easy identification from a distance, as well as locking and unlocking the optional Smart Top Box. A clutch mechanism in the primary switch prevents the handlebars from being forcefully opened.


Honda’s engineers began with the tubular steel diamond frame for an invisible – but significant – advancement of the X-chassis ADVs and, through a careful redesign using varying tube thicknesses and weight, not only saved 1kg over the previous frame but also freed up more usable space for the storage compartment.

The rake and trail are set at 27°/104mm, with a 1590mm wheelbase. The 2021 X-ADV Honda Adventure Bike is maneuverable in compact spaces thanks to its 39° steering angle (and 2.8m turning radius). Long travel suspension (153.5mm in front and 150mm in back) is paired with 165mm of ground clearance. At 236kg, the overall wet weight is 3kg less.

The 41mm cartridge-type USD fork adjusts for spring preload and rebound dampening to handle rugged terrain. The spring preload-adjustable rear shock is a solo tube split pressure design that uses Pro-Link to control the aluminum swingarm, which is made up of a machined-hollow cross member and U-shaped (in cross-section) arms.

The stainless steel rust-resistant spokes on the 17-inch front wheel and 15-inch rear tire add to the X-capacity ADVs to gently soak up rugged terrain. Block-pattern tires improve ride quality, while L-shaped valve stems make it simple to monitor air pressure. The front and rear tires are 120/70 R17 and 160/60 R15.

2021 X-ADV Honda Adventure Bike

2021 X-ADV Honda Adventure Bike – Technical Specifications


Type Liquid-cooled 4-stroke 8-valve, SOHC parallel 2-cylinder. EURO5 compliant.
Displacement 745cc
Bore & Stroke 77mm x 80mm
Compression Ratio 10.7 : 1
Max. Power Output 43.1kW @ 6,750rpm
Max. Torque 69Nm @ 4,750rpm
Oil Capacity 4.0L

Fuel System

Carburation PGM-FI electronic fuel injection
Fuel Tank Capacity 13.2 liters
Fuel Consumption 3.6L/100km

Electrical System

Starter Electric
Battery Capacity 12V/11AH


Clutch Type Wet multi-plate hydraulic 2-clutch
Transmission Type 6-speed Dual Clutch Transmission
Final Drive Chain


Type Diamond; steel pipe


Dimensions (L´W´H) 2215mm x 940mm x 1370mm
Wheelbase 1590mm
Caster Angle 27°
Trail 104mm
Seat Height 820mm
Ground Clearance 165mm
Kerb Weight 236kg


Type Front 41mm USD,120mm stroke
Type Rear Monoshock damper, Pro-Link swingarm, 120mm travel


Type Front Spoke wheel
Type Rear Spoke wheel
Rim Size Front 17M/C x MT3.50
Rim Size Rear 15M/C x MT4.50
Tyres Front 120/70-R17M/C
Tyres Rear 160/60-R15M/C


ABS System Type 2-channel
Type Front 296mm dual discs with 4-piston calipers
Type Rear 240mm single disc with single-piston caliper

Instruments & Electrics

Instruments 5-inch colour TFT Meter
Security System Smart key system
Headlight LED DRL
Taillight LED
