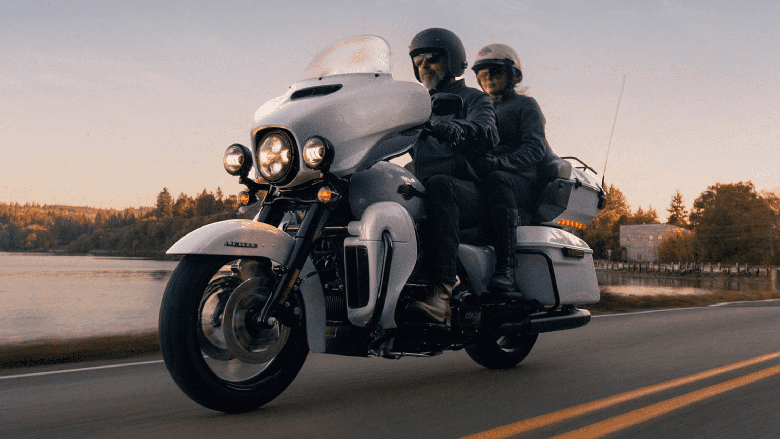

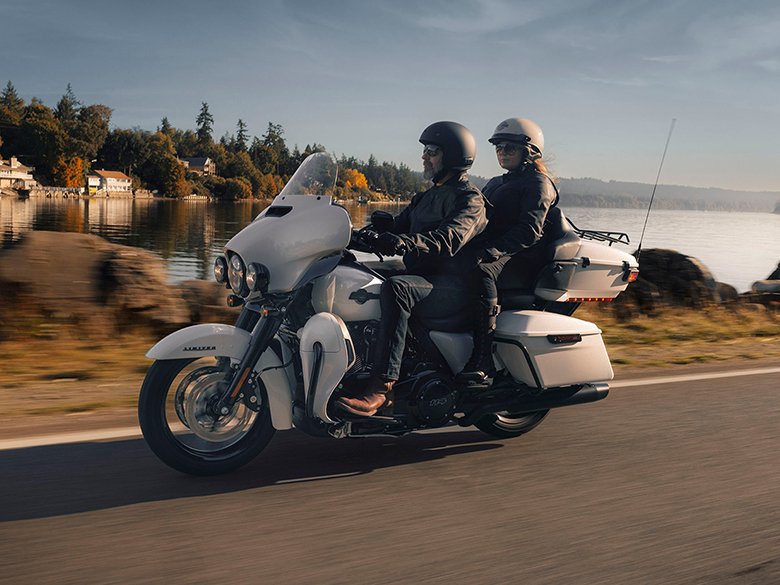

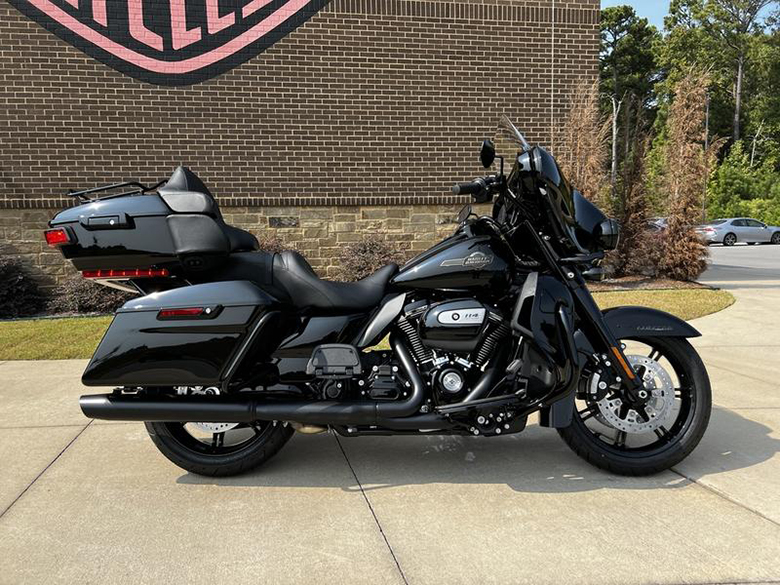

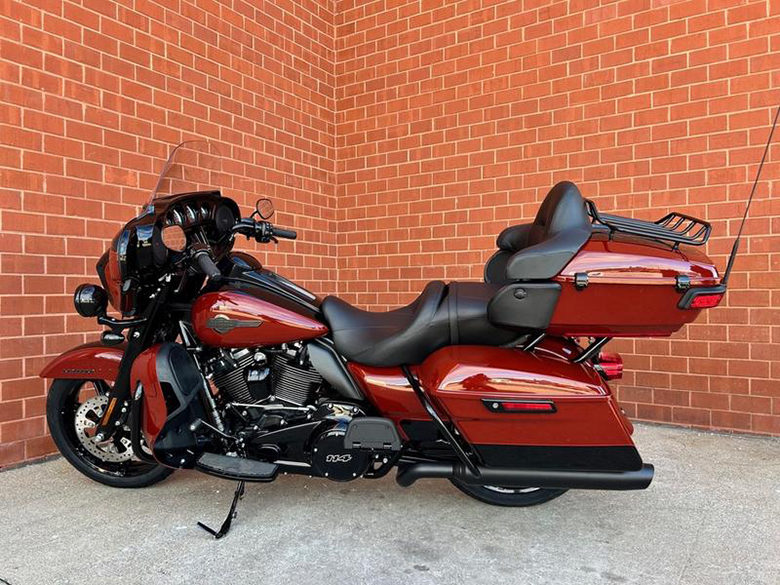

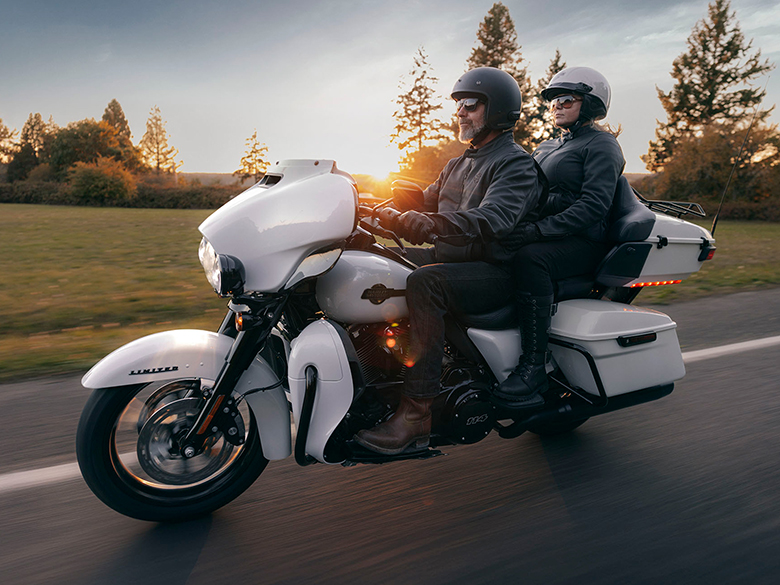

The 2024 Harley-Davidson Ultra Limited Touring Bike delivers top-tier touring performance without sacrificing ride quality. From its powerful Twin-Cooled™ Milwaukee-Eight® 114 V-Twin engine to the heated hand grips, it strikes the perfect balance of power and comfort. It features a bold batwing fairing with a splitstream air vent for optimized airflow and reduced head buffeting.
The BOOM!™ GTS infotainment system, electronic cruise control, advanced suspension, and spacious Tour-Pak® storage with room for two full-face helmets make this a premium long-distance touring machine. For 2024, this model is available exclusively with black trim.
2024 Harley-Davidson Ultra Limited Touring Bike – Features and Specs
Milwaukee-Eight 114 Engine
The engine of 2024 Harley-Davidson Ultra Limited Touring Bike delivers a massive amount of torque for instant acceleration, producing the unmistakable Harley-Davidson sound with every twist of the throttle.
Also Read:Â 2024 Harley-Davidson Street Glide Touring Bike Review
Electronic Cruise Control
The six-speed Cruise Drive transmission ensures smooth and quiet shifting and allows you to set and maintain your desired speed over varying terrain.

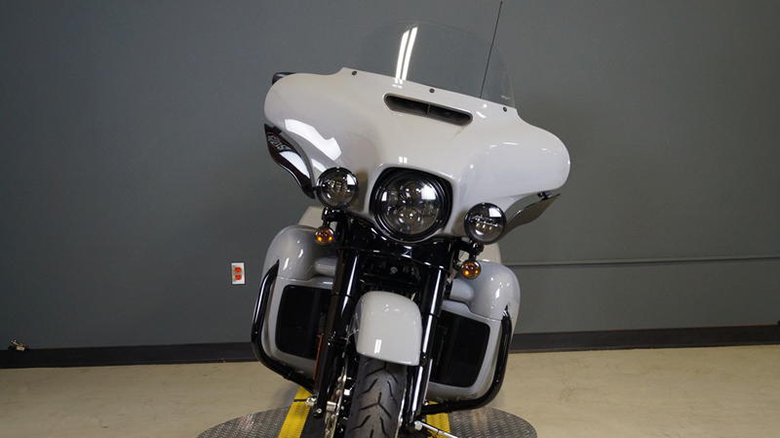

Vented Batwing Fairing
The aggressively styled batwing fairing is vented to manage airflow efficiently and minimize head buffeting.
Reflex Linked Brembo Brakes With Standard ABS
The braking system of 2024 Harley-Davidson Ultra Limited Touring Bike enhances control and helps prevent wheel lock-up during intense braking scenarios.
Premium Tour-Pak Luggage Carrier
This sleek and spacious luggage carrier includes a rack and offers enough room to store rider and passenger helmets and essential travel gear.
Also Read:Â 2024 Harley-Davidson Road King Special Touring Bike Review
2024 Harley-Davidson Ultra Limited Touring Bike – Price
The new 2024 Harley-Davidson Ultra Limited Touring Bike is available at $32,499 only.
2024 Harley-Davidson Ultra Limited Touring Bike – Technical Specifications
Dimensions
Length | 102.3 in. |
Seat Height, Laden | 27.5 in. |
Ground Clearance | 5.3 in. |
Rake | 26 |
Trail | 6.7 in. |
Wheelbase | 64 in. |
Tire, Type | Dunlop Harley-Davidson Series, bias blackwall front & rear |
Tires, Front Specification | BW 130/70B18 63H |
Tires, Rear Specification | BW 180/55B18 80H |
Fuel Capacity | 6 gal. |
Oil Capacity (W/Filter) | 5 qt. |
Weight, As Shipped | 880 lb. |
Weight, In Running Order | 917 lb. |
Luggage Capacity -Volume | 4.7 cu ft |
Engine
Engine | Twin-Cooled Milwaukee-Eight 114 |
Bore | 4.016 in. |
Stroke | 4.5 in. |
Displacement | 114 cu in |
Compression Ratio | 10.5:1 |
Fuel System | Electronic Sequential Port Fuel Injection (ESPFI) |
Exhaust | 2-1-2 dual exhaust with tapered mufflers |
Performance
Engine torque testing method | J1349 |
Engine Torque | 122 ft-lb |
Engine Torque (RPM) | 2750 |
Horsepower | 93 HP / 69 kW @ 5020 rpm |
Lean Angle, Right (Deg.) | 32 |
Lean Angle, Left (Deg.) | 32 |
Fuel Economy Testing Method | Estimated City/Hwy |
Fuel Economy | 43 mpg |
Drive train
Primary drive | chain, 34/46 ratio |
Gear Ratios (Overall) 1st | 9.593 |
Gear Ratios (Overall) 2nd | 6.65 |
Gear Ratios (Overall) 3rd | 4.938 |
Gear Ratios (Overall) 4th | 4 |
Gear Ratios (Overall) 5th | 3.407 |
Gear Ratios (Overall) 6th | 2.875 |
Chassis
Front fork | 49mm Dual Bending Valve |
Rear Shocks | Premium standard height hand-adjustable rear suspension |
Wheels, Front Type | Gloss Black Slicer II |
Wheels, Rear Type | Gloss Black Slicer II |
Brakes, Caliper Type | 32 mm, 4-piston fixed front and rear |
Brakes, Rotor Type | Dual floating rotors (front), fixed rotor (rear) |
Electric
Lights (As Per Country Regulation), Headlamp, Tail/Stop/Front Signal Lights | LED 34-watt, 915 lumen low beam, 37-watt, 915 lumen high beam with switchable 20-watt, 1,220 lumen LED Fog Lamps. Total of 2,136 lumen output at low beam with fog lights; 8W/28W tail/stop, front signal lights; LED rear turn signals |
Gauges | Gauges are styled to complement each vehicle. Display features include odometer, trip A, trip B, range to empty, gear indicator, and larger tell-tale indicators. |
Infotainment
Infotainment system | Boom! Box GTS |
Screen Size | 6.5 in |
Type | Full Color TFT |
Watts Per Channel | 25 |
Speakers | 4 |
Speaker Size | 5.25-inch standard |
Headset Specifications (If Equipped) | 16-64 ohms |
AM | Standard |
FM | Standard |
Weather Band (WB) | Standard |
Sd Card, Flash Drive, and Mp3 – Via Usb Connection | Supported |
Languages | English (US/UK), German, Spanish (Mexico/Spain), French (Canada/France), Italian, Portuguese (Portugal/Brazil), Russian, Czech, Polish, Dutch, Turkish, Japanese, Korean, Chinese (Simplified), Siamese (Thai), Bahasa (Indonesian), Arabic |
Hands-Free Mobile Phone – Via Bluetooth | Standard |
Voice Recognition Languages: Phone Functions Only | Phone dependent |
Voice Recognition Languages: Tuner/Media/Navigation | Phone dependent |
Rider/Passenger Intercom | Standard (Passenger Headset Sold Separately) |
Vehicle Information Screen (Air Temperature, Oil Pressure, and EITMS) | Standard |
Text-To-Speech (TTS) Languages | Phone dependent |
USB | USB/MTP/iPod/iPhone |
Bluetooth | Phone/Media Supported |
Rider safety enhancements
Anti-lock brake system (ABS) | Included |
Electronic Linked Braking (ELB) | Included |
Vehicle Hold Control (VHC) | Optional |
Tire Pressure Monitoring System (TPMS) | Optional |
Cornering Enhanced Anti-Lock Brake System (C-ABS) | Optional |
Cornering Enhanced Electronic Linked Braking (C-ELB) | Optional |
Cornering Enhanced Traction Control System (C-TCS) | Optional |
Cornering Drag-Torque Slip Control System (C-DSCS) | Optional |
