Ducati Superleggera V4 2020 Super Bike Review Specs

The Ducati Superleggera V4 2020 Super Bike is more than a motorcycle. It’s a complete experience that takes you inside the Ducati. Superleggera V4 marks the pinnacle of engineering, creativity, attention to detail, and customer service for Ducati. It is a limited edition motorcycle of only 500 unique numbered bikes. The Superleggera V4 is a road-legged sport bike designed and built to achieve maximum on-track performance while maintaining the overall reliability and user-friendliness of race bikes.

Many parts are made of carbon fiber. Smooth firing, for example, is an aerodynamic performance comparable to or better than modern MotoGP bikes.

Desmosedici GP16-produced ‘biplane’ wings at a speed of 270 kilometers per hour produce 50 kilograms of downforce, which is 20 kilograms more than the wings of Panigale V4 MY20 and V4 R.

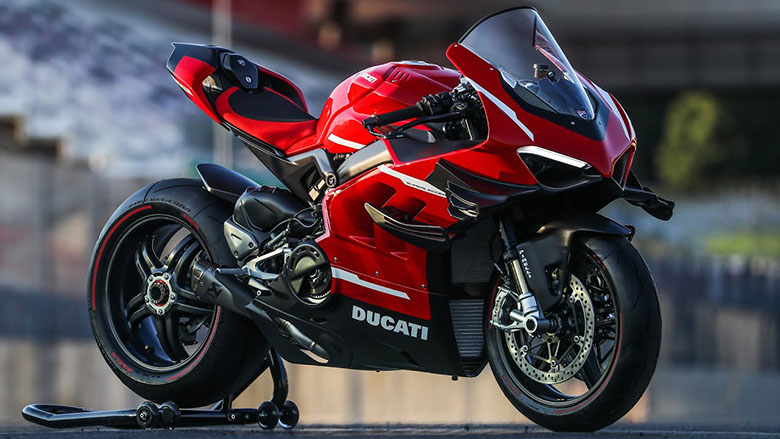

Ducati Superleggera V4 2020 Super Bike

Inspired by the Desmosideki GP19 on carbon fiber firing, the red color of the lever GP19 contrasts with a bare carbon that emphasizes shapes, materials, and technical aspects.

The Desmosedici Stradale R engine is hidden behind a carbon core, lighter and more powerful than ever. The Superleggera V4 weighs 998 cm3 90 ° V4 less than the 1,103 cm3 V4 by 2.8 kg.

Ducati Superleggera V4 2020 Super Bike – Features and Price

Dreams matter

Here’s the end: the moment we’ve all been waiting for. With Ducati fans around the world, we’re excited to share with you our next step towards the virtues of engineering.

Everything we make expresses a desire for perfection. No one, however, comes close to Superleggera. We incorporated the finest carbon fiber into the aerodynamic design of the future for this project. As engineers, builders, and aspiring riders, we have achieved our goals here.

First and foremost, the new Superleggera V4 is a true statement. It is where the line between trying and doing is drawn and it is an essential creature we have.


Aero package, which includes ‘biplane’ aerofoils derived from DesmoCDC GP16 and a dedicated color scheme inspired by DesmoCDC GP19.

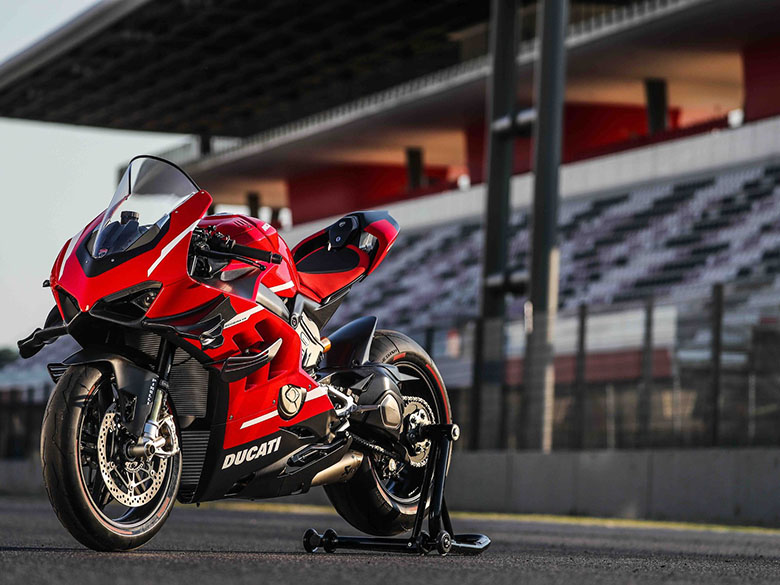

Ducati Superleggera V4 2020 Super Bike


The Ducati Superleggera V4 2020 Super Bike efficiently delivers 224 horsepower at 15,250 rpm and 11.8 kgm @ 11,750 rpm Desmosedici Stradale R engine (EU homologation data). It also includes;

  • Titanium Exhaust Manifold
  • Type-Approved Akrapovic Titanium Silencer
  • Lightweight STM EVO-SBK 8-Disc Clutch Titanium / Aluminum Nuts and Bolts
  • Oil Pump Without Return Phase
  • Specially machined and light


Carbon Fiber Front Frame, Carbon Fiber Single Sided Swing Arm, Carbon Fiber Wheels with Aluminum Hibs, Pirelli Diablo Supercorsa SP Tires, Carbon Fiber Rear Subframe, Desposedici.

Hellins TTX36 Shock Observer with Titanium Spring and GP Valves; Stylema® R Front Brake Calipers; Brembo MCS 19.21 Radial Front Pump with Remote Adjustment;

Ballot aluminum footrest plates, rear brake lever, clutch lever, and an all-new titanium rear wheel nut Titanium/aluminum screw and bolt.

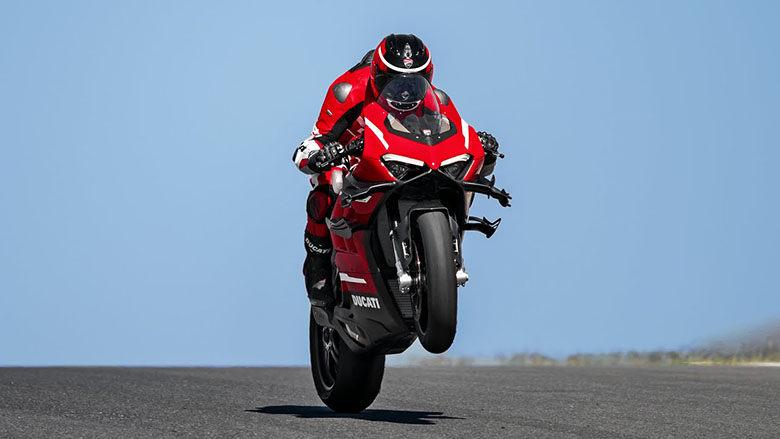

Ducati Superleggera V4 2020 Super Bike


Five different riding modes to choose from. 5 “full-color TFT screen with three displays: Track, Road, and Race GP (the latter is only available when the Acropovi Racing Exhaust is installed). The latest generation electronics package with 6-axis weeded platform: ABS (Anti-Lock Braking System), EVO Ducati Traction Control (DTC), EVO 2 Engine Brake Control (EBC), EVO 2 Ducati Slide Control (DSC), Ducati Quick Shift up / down (DQS), Ducati Wheelie Control (DWC), EVO Ducati Power Launch (DPL), EVO 2 Engine Brake Control (EBC), EVO 2 Engine Brake Control (EBC), EVO 2 Engine Brake Control (EBC), EVO 2 Engine bra.

UC Ducati Lap Timer GPS (DLT GPS) EVO 2 Pit limiter (PIT); Ducati Data Analyzer + GPS (DDA + GPS) Ducati Multimedia System (DMS) is ready.

Panigale V4 becomes Ducati Superleggera: the imaginary bike is finally a reality.

The Superleggera V4 is Ducati’s most influential and technically advanced production motorbike to date and will be built in a limited edition bike of only 500 motorcycles, each individually numbered.

The world’s first and only street-legal motorbike with a carbon fiber chassis, swing arm, and wheels—extreme aerodynamics and biplane wings. In the form of a racing kit, the power/weight ratio is 1.54 HP/kg, a new high for street legal bikes. From the beginning of June 2020, 5 bikes will be delivered daily.

February 6, 2020, Borgo Panigale, Bologna – Ducati realizes its ambitions to advance the boundaries of engineering, focus on detail, and design motorcycles with Superleggera V4, a project that Bologna Company in terms of engineering, performance and design.

Ducati Motorcycles has officially unveiled its new Superleggera V4, the most powerful and technically sophisticated motorcycle created by Borgo Panigale Company, in a limited edition of only 500 unique numbered motorcycles. , After a special preview for our most passionate and devoted customers.

The Superleggera V4 is the world’s first straight-leg motorcycle that uses composite materials for the entire load-bearing structure of the chassis (frame, subframe, swing arm, and wheel), resulting in a weight loss of 6.7 kg occurs.

These components are 100% tested using state-of-the-art techniques, including thermography, ultrasonic examination, and tomography, adopted by the aerospace industry to guarantee the highest quality and safety requirements.

By increasing the length of the swing arm, the chassis ratio has been changed for optimal track use. As a result, you will have the power of unparalleled laziness, rapid bending in inclination, and sharp lines coming out of them.

Aero Package

Superleggera V4’s latest aerodynamics is an addition to the Panigale V4 MY20 and V4 R’s aero package. The Superleggera V4 Aero Package is more efficient than the package used on Moto GP bikes, thanks to biplane configured airfiles that work with high-speed rider torso firing.

Aerodynamic development, like MotoGP, began with basic CFD (Computational Fluid Dynamics) simulations, which were then refined to a complete wind tunnel model.

Superleggera V4 firing consists entirely of carbon fiber, as are biplane airfiles, which are inspired by Desmosedici GP16 – the most aerodynamically efficient Desmosedici ever!

The top aerofoil is a twin taper design with an end plate with a longitudinal stroke and two additional downforce components. The leading edge of the head element bends at the angle of attack. The lower aerofile, on the other hand, has a two-part “main” and “flap” configuration and is embellished with a fissured end plate to extend the extension and minimize drag significantly.


A more powerful, lighter version of Desmosedici Stradale R Desmosedici Stradale R Desmosedici Stradale. In its road-legal version, the Desmosedici Stradale R that powers the Superleggera V4 produces 224 horsepower at 15,250 rpm and 11.8 kgm at 11,750 rpm (EU homologation data).

A 90 ° 998 cm3 V4 engine with titanium and aluminum bolts, a new, lighter 8-disc clutch, a weight-loss machining camshaft, a lighter gear shift drum, an oil pump without a return step from the ends, and titanium mini Folds that work. At the center of the Tandem Superleague V4 with Road Legal Acropovi Silencer.

Low carbon fiber weight

Ducati built carbon fiber frames and swing arms from the ground, shedding light on Ducati Corse’s knowledge of calculation methods, material selection, and testing methods.

To ensure their integrity under all possible conditions, the components underwent rigorous final testing during development, and each item was tailored to the quality control procedures used in Moto GP.

Engine Brake Control (EBC) EVO

Engine brake control (EBC) helps riders to maximize the stability of the bike during extreme turns. During hard braking, the EBC EVO monitors the position of the throttle body valve, the selected gear, and the loss of the crankshaft and adjusts the throttle aperture to balance the torque supplied to the tire, which leans the angle better.

Ducati Superleggera V4 2020 Super Bike

Ducati Superleggera V4 2020 Super Bike – Technical Specifications


Type Desmosedici Stradale 90-degree V4, lightened, counter-rotating crankshaft, 4 Desmodromic timing, 4 valves per cylinder, liquid-cooled
Displacement 998 cc
Bore X stroke 81mm x 48.4mm
Compression ratio 14.0:1
Power (EU homologation) 165 kW (224 hp) at 15,250 rpm – 174 kW (234 hp) at 15.500 rpm with full racing exhaust
Torque (EU homologation) 116 Nm (85.6 lb-ft) at 11,750 rpm – 119 Nm (87.7 lb-ft) at 11.750 rpm with full racing exhaust
Fuel injection Electronic fuel injection system. Twin injectors per cylinder. Entire ride-by-wire elliptical throttle bodies, including aerodynamic valves. The variable-length intake system
Exhaust 4-2-1-2 system, including 2 catalytic converters and two lambda probes


Gearbox Six speed having Ducati Quick Shift (DQS) up/down EVO 2
Primary drive Straight cut gears; Ratios 1.80:1
Final drive Regina ORAW2 chain; Front sprocket 15 and Rear sprocket in Ergal 42
Clutch Hydraulically controlled slipper dry clutch


Frame Carbon fiber “Front Frame.”
Front suspension Fully adjustable 43mm Öhlins NPX25/30 pressurized fork with TiN treatment, billet fork bottoms, lightweight springs, fully adjustable.
Front-wheel 5-split spoke carbon fiber 3.50″ x 17″
Front tire Pirelli Diablo Supercorsa SP 120/70 ZR17
Rear Suspension Fully adjustable Ohlins TTX36 unit with GP valve and titanium spring. Carbon fiber single-sided swingarm.
Rear Wheel 5-split spoke carbon fiber 6.00″ x 17″
Rear tire Pirelli Diablo Supercorsa SP 200/60 ZR17
Wheel travel (front/rear) 120mm (4.7 inches) – 130mm (5.1 inches)
Front brake 2 x 330mm of semi-floating discs, radially attached Brembo Monobloc Stylema® R 4-piston calipers with Cornering ABS EVO
Rear brake 245 mm disc, 2-piston caliper with Cornering ABS EVO
Instrumentation Last generation digital unit including 5-inch TFT color display

Dimension and Weight

Dry weight 159 kg (350 lb)
Seat height 835 mm (32.9 in)
Wheelbase 1.480 mm (58,3 in)
Rake 24,5°
Front-wheel trail 100 mm (3,94 in)
Fuel tank capacity 16 l – 4.23 gallon (US)
Number of seats Single-seat


Safety equipment Riding Modes, Power Modes, Ducati Slide Control (DSC), Cornering ABS EVO, Ducati Traction Control (DTC) EVO 2, Engine Brake Control (EBC) EVO, Ducati Wheelie Control (DWC) EVO, Auto tire calibration
Standard equipment Ducati Power Launch (DPL), Full LED lighting with Daytime Running Light (DRL), Ducati Quick Shift (DQS) up/down EVO 2, GPS module, Lap Timer EVO 2, PIT limiter, Ohlins steering damper, Quick adjustment buttons, Lithium-ion battery, Auto-off indicators, Chassis in carbon fiber, Carbon fiber fairings, Carbon fiber wheels, Carbon fiber mudguards, Biplane wings in carbon fiber, High-flow air filter, Type approved Akrapovič silencer in titanium
Additional equipment Front and rear paddock stand, Battery maintainer, Race Kit: Akrapovič Titanium racing exhaust, Machined mirror block-off plates, License plate mount removal plug, Swing arm guard, Carbon fiber clutch cover, Ducati Data Analyzer+ (DDA+) with GPS module, Side stand removal kit, Front and rear lights removal kit, Bike cover.
Ready for Ducati Multimedia System (DMS), Anti-theft


Warranty (months) 24 months unlimited mileage
Maintenance (km/months) 12,000km (7,500mi) / 12-month
Valve clearance adjustment (km) 24,000 km
Standard Euro 4
Consumption/Emissions 8 l/100km – 185 g/km
