2019 Dragster 800 RR Pirelli MV Agusta Naked Bike

The new 2019 Dragster 800 RR Pirelli MV Agusta Naked Bike is an impressive and world-class motorcycle that features excellent rubber details developed by Pirelli Design and can be equipped with exclusive Diablo supercorsa colored tires.

The collaboration of Pirelli and MV Agusta continues, and both Italian companies stand out for their industrial history. They are appreciated all around the globe for their shared values such as their Made in Italy design and the deep association with motorsport. The overall result of this synergy is the latest limited edition jewel created by famous motorcycle manufacturing brand MV Agusta and Pirelli Design, the Dragster 800 RR Pirelli. It was presented in a world premiere on September 22 at the inauguration of the new P Zero World of Monte Carlo.

A streetfighter’s appearance with a powerful three-cylinder engine, the 2019 Dragster 800 RR Pirelli MV Agusta Naked Bike is the technical base for developing this version. It is the perfect blend of raw power, design, and technology while super compact, aggressive and unique appearance. The method of the Dragster 800 RR Pirelli is in its purest form and it provides breathtaking performance. The perfect weight distribution, extremely refined chassis and suspension, and unique three-cylinder character are the main characteristics of a machine, which the most demanding riding enthusiasts created.

2019 Dragster 800 RR Pirelli MV Agusta Naked Bike – Features

2019 Dragster 800 RR Pirelli MV Agusta Naked Bike

Limited Edition

Like the Brutale 800 RR Pirelli, the 2019 Dragster 800 RR Pirelli MV Agusta Naked Bike comes in a limited edition, thanks to a separate license agreement between Pirelli and MV Agusta. For the first time in Pirelli Design, born as an incubator of high-end projects to improve technological know-how, high-performance standard, and distinctive glamour inherent in the Pirelli brand.

Styling

The styling not only personalizes the attractive appearance of the motorcycle containing two different color combinations. The first one is more gritty black with yellow while the second has a more elegant white and blue color. The fuel tank slider and the fairing are made of rubber specially formulated by Pirelli’s Research and Development department to guarantee maximum resistance to scratches and rubbing to which these objects are subject and chemical and atmospheric agents like the fuel. Both of these elements are easily recognizable, thanks to the iconic flash symbol that distinguishes the tires of Diablo range including the Diablo Supercorsa SP that equip the new 2019 Dragster 800 RR Pirelli MV Agusta Naked Bike in 120/70 ZR17 front and 200/55 ZR17 rear with the rim of 6 inches.

2019 Dragster 800 RR Pirelli MV Agusta Naked Bike

Finishing

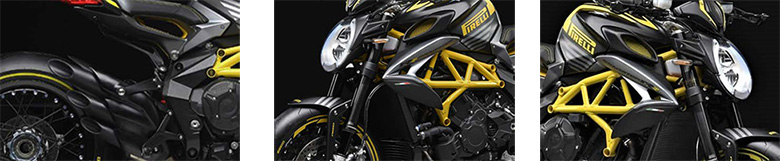

The seat of the new 2019 Dragster 800 RR Pirelli MV Agusta Naked Bike was created ad hoc by the Castiglioni Research Center to make the motorcycle even more exclusive. It contains a double texture with contrasting stitching and a unique flash of the Diablo inflated to embellish the tail unit signed by the Pirelli Design. Its exhaust silencer terminals are specially designed through the application of a special ceramic-based paint that is resistant to a very high temperature.

The colors are carefully selected by a specialist from Castiglioni Research Center and by Pirelli Design that aims to enhance the lines of the Dragster 800 RR Pirelli. To highlight this partnership, the first proposal features a matte black base that has glossy inserts painted in yellow to recall the Pirelli institutional colors. The yellow logo denotes the Pirelli brand on the fuel tank side, while the Diablo logo shows the range of high-performance Pirelli tires. The second color is centered on the glossy white base with blue inserts.

2019 Dragster 800 RR Pirelli MV Agusta Naked Bike

To unequivocally identify the motorcycle as a result of collaboration between Pirelli and MV Agusta. It is possible to buy Diablo Supercorsa SP tires with colored sides, respectively, including yellow or blue stripes, depending on the kind to which they are joint.

2019 Dragster 800 RR Pirelli MV Agusta Naked Bike – Technical Specifications

Engine

Type Three-cylinder, four strokes, 12 valve
Timing system “D.O.H.C” including mechanical chain tensioner
Total displacement 798 cm3 (48.68 cubic inches)
Starting Electric
Compression ratio 13.3:1
Bore x stroke 79 mm x 54.3 mm (3.1 inches x 2.1 inches)
Max. Power- RPM (at the crankshaft) 103 kW (140 hp) at 12.300 RPM
Max. Torque – RPM 87 Nm (8.87 kgm) at 10.100 RPM
Cooling system Cooling with separated liquid and oil radiators.
Engine management system All-new Integrated ignition – injection system MVICS 2.0 (Motor and Vehicle Integrated Control System) with six injectors. Engine control unit Eldor EM2.0, throttle body entire ride-by-wire Mikuni, pencil-coil including ion-sensing technology, control of detonation and misfire. Torque control with four different maps, Traction Control with eight different levels of intervention
Electronic quick-shift MV EAS 2.0 (Electronically Assisted Shift up & down)
Clutch Multi-disk wet clutch with hydraulic actuation
Transmission Cassette style; 6-speed, constant mesh
Primary drive 22/41
Gear ratio 1st gear: 13/37
2nd gear: 16/34
3rd gear: 18/32
4th gear: 19/30
5th gear: 21/30
6th gear: 22/29
Final drive ratio 16/41

2019 Dragster 800 RR Pirelli MV Agusta Naked Bike Specs

Electrical Equipment

Voltage 12 V
Alternator 350 W at 5000 RPM
Battery 12 V – 8.6 Ah

Dimensions and Weight

Wheelbase 1400 mm (55.12 inches)
Overall length 2035 mm (80.12 inches)
Overall width 935 mm (36.81 inches)
Saddle height 820 mm (32.28 inches)
Min. ground clearance 135 mm (5.31 inches)
Trail 95 mm (3.74 inches)
Dry weight 168 kg (370.4 lbs.)
Fuel tank capacity 16.5 liters

2019 Dragster 800 RR Pirelli MV Agusta Naked Bike Specs

Performance

Maximum speed 244.0 km/h (151.6 mph)

Frame

Type All-New ALS Steel tubular trellis
Rear swing arm pivot plates material Aluminum alloy

Front Suspension

Type Marzocchi “UPSIDE DOWN” telescopic hydraulic fork in DLC treated aluminum, including anodized fork legs & having rebound-compression damping and spring preload external and separate adjustment
Fork diameter 43 mm (1.69 inches)
Fork travel 125 mm (4.92 inches)

Rear Suspension

Type Progressive Sachs, solo shock absorber with a rebound, compression damping and spring preload adjustment
Single-sided swingarm material Aluminum alloy
Wheel travel 125 mm (4.92 inches)

2019 Dragster 800 RR Pirelli MV Agusta Naked Bike Specs

Brakes

Front brake Double floating disc including Ø 320 mm (Ø 12.6 inches) diameter, including steel braking disc and flange
Front brake caliper All-new Brembo radial-type, including four pistons Ø 32 mm(Ø 1.26 inches)
Rear brake Single steel disc including Ø 220 mm (Ø 8.66 inches) dia.
Rear brake caliper Brembo including 2 pistons – Ø 34 mm (Ø 1.34 inches)
ABS System Bosch 9 Plus including RLM (Rear wheel Lift-up Mitigation)

Wheels

Front: Material/size With aluminum alloy spokes 3.50” x 17”
Rear: Material/size With aluminum alloy spokes 6.00” x 17”

Tires

Front Pirelli Diablo Supercorsa SP 120/70 – ZR 17 M/C (58 W)
Rear Pirelli Diablo Supercorsa SP 200/55 – ZR 17 M/C (78 W)

Fairing

Material Thermoplastic

Contents

Steering damper Manually adjustable with eight settings. Pirelli rubber pad on dashboard cover and fuel tank – Black ceramic finish on exhaust terminals

Emissions

Environmental Standard Euro-Four
Combined fuel consumption 6.7 l/100km
Carbon dioxide Emissions 163 g/km

2019 Dragster 800 RR Pirelli MV Agusta Naked Bike

Conclusion

In the end, team Bikes Catalog would love to say that the new 2019 Dragster 800 RR Pirelli MV Agusta Naked Bike is an impressive naked motorcycle that has got a powerful engine, attractive chassis design and inspirational color combination. The seat design gives an aggressive riding position while the handlebar provides maximum control over the rider’s hand.
