KTM Freeride 250 R 2017 Specs Review

0
2093

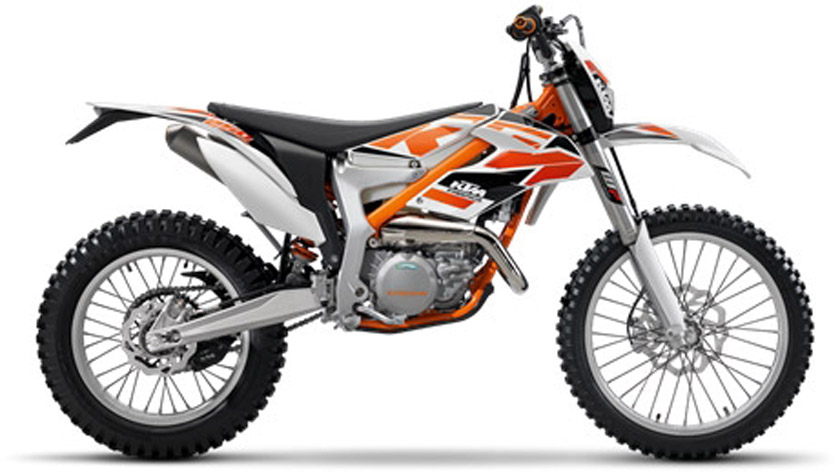

KTM Freeride 250 R 2017

The new KTM Freeride 250 R 2017 is an incredible bike for those riders who never had the experience of riding the two-stroke off-road bike. The new KTM Freeride 250 R 2017 has the powerful two-stroke engine with the lightweight, agile off-road chassis. This bike provides better power and acceleration so that rider can enjoy the ride. The design and graphics of this bike are mind blowing and worth looking. The seat provides best-riding position and control of the motorcycle, in other words, it provides the best rideability experience. The wheels and tires provide the best possible traction and grip on all condition of the track. In other words, this motorcycle is the complete package for those riders who have the passion for riding off-road. The review of newly launched KTM Freeride 250 R 2017 off-road bike with the specification are written below.

KTM Freeride 250 R 2017

KTM Freeride 250 R 2017 – Specification

Engine

The new KTM Freeride 250 R 2017 comes with the powerful engine that delivers a massive amount of acceleration and torque to the wheels. The engine of the new KTM Freeride 250 R 2017 contains its cylinders that have ducts and valve timing adapted to the desired torque curve, as well as a matching piston. This motorcycle has the undamped CCS (Coil Spring Steel) clutch which has the steel cage and a new clutch package tuned especially for the free rides with seven steel carrier lining discs. The clutch is performing well and is offering smooth and precise control. The new KTM Freeride 250 R 2017 has the 6-speed gearbox which is specially developed for the freeride models that have shorter transmission ratios, while the extended sixth gear is designed for the override. The shorter secondary gear ratio of 46 to 12 ensures the great traction and the best acceleration. This motorcycle has the new and better exhaust system that has light alloy silencer and a slender sound box that plays a significant role in high torque characteristics. The engineers put the header on one side and integrate it optimally into the bike. The heat of the engine is dissipated via the single-piece promoted integrated radiator. A fan is mounted as the standard together with the thermos-switch that ensure the stable temperature management. The engine is started with the help of electric starter that provides the higher engine starting speed; it contains the lithium-ion battery which offers higher starting reliability.

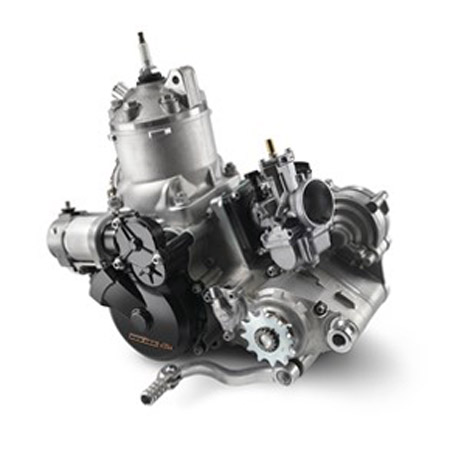

KTM Freeride 250 R 2017 Engine

Chassis

The newly launched KTM Freeride 250 R 2017 has the robust and compact chassis that support the two-stroke engine. The frame is the composite construction containing high-grade, chrome-molybdenum steel profiles which are bolted together with the forged light-alloy components. The lower frame tubes are raised by the 60 millimeters which result in greater ground clearance in conjunction with the large steering lock. It has the bolted sub-frame which is made up of high strength plastic impressed with the high inherent stability, and it makes the new KTM Freeride 250 R 2017 off-road bike lighter. This motorcycle is equipped with the lithium-ion starter battery which not only reduces the weight but ensures efficient starting.

Suspension and Brakes

The all-new KTM Freeride 250 R 2017 off-road bike comes with the best suspension and braking features. It has the best, and high-quality CNC machined triple clamps with the great upside-down fork from the WP suspension, which features the 43 mm outer tubes that offer better exceptional stability, and it ensures excellent responsiveness and sound damping. The suspension system provides more comfort and less fatigue. The damping system has the adjustable rebound, and the new shock absorber offers separate high and low-speed adjustment options for the compression damping. The bike has the low seat height of 915 mm, but it can be lower down by the adjustment of compression damping. The motorcycle has the lightweight-allot cast swingarm of 3.2 kg that has been redesigned by the KTM engineers to support the suspension system. It plays a significant role in the high torsional stiffness to excellent tracking stability of the motorcycle. The PDS shock absorber is hinged directly at the swingarm. The braking system is also working right. It has the formula brake system control which is specially designed for the freeride off-road bike. It comprises with the radially bolted brake calipers, with the four pistons at the front and two at the rear. The new 260/210 mm of brake discs are lightweight and gives the best braking performance.

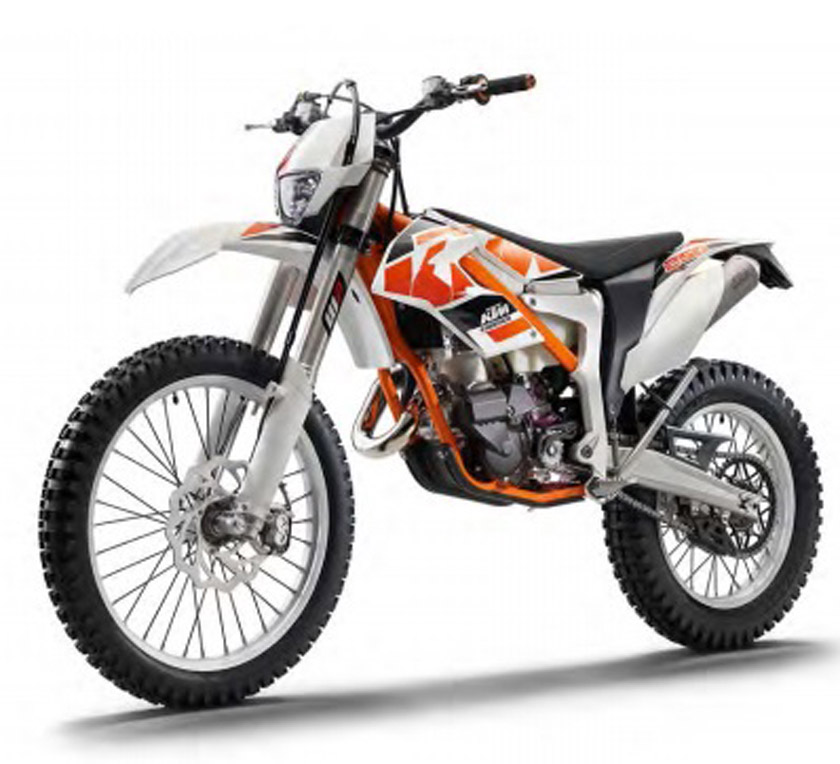

KTM Freeride 250 R 2017

Other features

The new KTM Freeride 250 R 2017 comes with a lot of features which makes this bikes incredible to ride. The bike has the extremely light, spoked wheels with the anodized, light-alloy rims from the GIANT; CNC machined hubs, and the light-alloy spoke nipples. It has the new MAXX tires which are derived from the world of trial sport. The size of these tires is 2.75-21 and 4.00-18. They feature a soft, grippy compound that gives the best grip on all surfaces. These tires provide the best handling, and they are durable as well. The air filter is located at the rear of the tank, it is well protected but is readily available. It has the large screen area which gives the best performance. The fuel tank is lightweight and is made up of polyethylene offering the fuel capacity of 7 liters. It is protected between the upper frame profiles below the seat. The rider can have the grace of fuel level because the tank has the transparent plastic covering. The new KTM Freeride 250 R 2017 bike has the light and wide, precision-cast foot pegs that ensure the reliable contact with the motorcycle and the high level of stability.

Design

The newly launched KTM Freeride 250 R 2017 off-road bike comes with the best bodywork and superb graphics. The bike has the best slender seat and spoiler profile. The new body offers the maximum of freedom to the rider with, particularly ergonomic contract surfaces. The graphics are superb and worth looking. The handlebar is lightweight and made up of high strength aluminum that can be adjusted to four different positions. It has the digital instrument cluster from the Trail Tech that features the integrated indicator lights.

KTM Freeride 250 R 2017 – Specs

Engine

Design 1-cylinder, 2-stroke engine
Displacement 249 cm³
Bore 66.4 mm
Stroke 72 mm
Starter Electric starter
Transmission 6-speed
Primary Drive 26:72
Secondary Gear Ratio 14:46
Clutch Wet, CSS multi-disc clutch, Formula hydraulics
EMS Kokusan

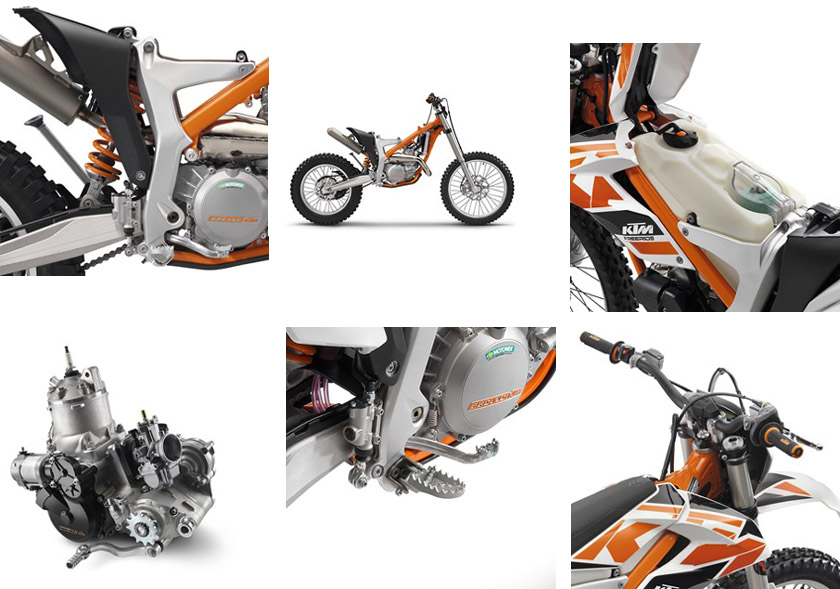

KTM Freeride 250 R 2017 Specs

Chassis

Frame Design Perimeter steel-aluminium composite frame
Front Suspension WP upside-down Ø 43 mm
Rear Suspension WP PDS shock absorber
Suspension Travel (Front) 250 mm
Suspension Travel (Rear) 260 mm
Front Brake Disc brake
Rear Brake Disc brake
Front Brake 260 mm
Rear Brake Disc Diameter 210 mm
Chain 5/8 x 1/4.”
Steering Head Angle 67 °
Wheelbase 1418 ± 10 mm
Ground Clearance 380 mm
Seat Height 915 mm
Tank Capacity 7 l
Weight Ready to Race 92.5 kg

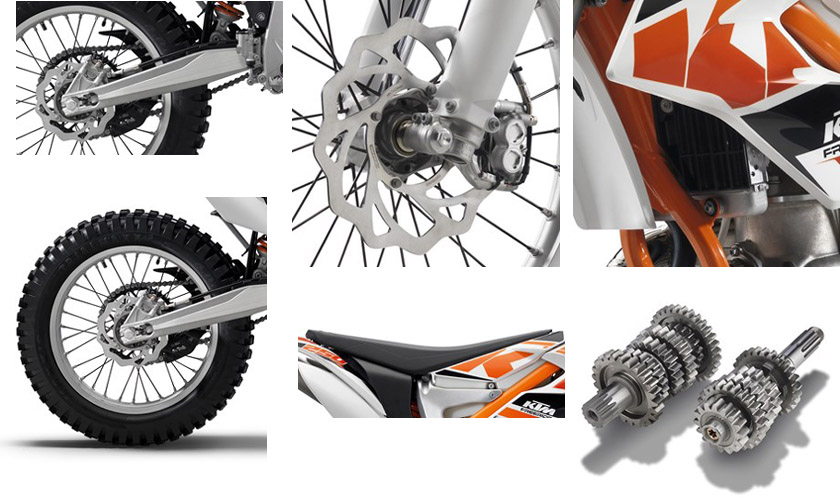

KTM Freeride 250 R 2017 Specs

Conclusion

The newly launched KTM Freeride 250 R 2017 off-road bike is an incredible bike of KTM brand. This bike has the powerful engine that offers the best performance in all conditions. The chassis of the bike is lightweight and has the perfect design. The graphics of the frame are excellent. The suspension and braking system of the motorcycle are performing well. In other words, the KTM Freeride 250 R 2017 bike is one of the best freerides bike of KTM brand.
